383.0125.32.06
slot cutter
Part number 38301253206

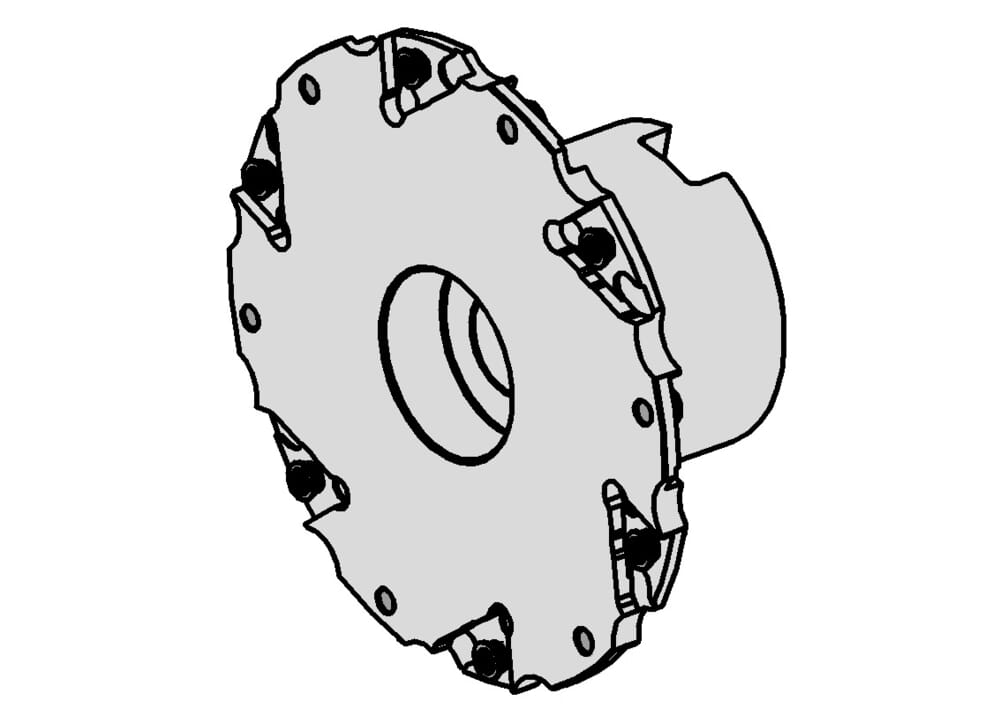

HORN slot cutter 383.0125.32.06 for Milling
Please note:Technical instructions
Katalog_CCTWS
314027R;314027L
Diameter of the mandrel (d2)
56
mm
Diameter facing system for disk cutters (d3)
32
mm
Left hand indexable insert (linke WSP)
6x L314...
Right hand indexable insert (rechte WSP)
6x R314...
Cutting width maximum (w)
6
mm
Miller length with indexable insert (h)
50
mm
Maximum milling depth (tmax)
32
mm
ISO_CCTMS
FDA22G3200$$$$
DIN_CCTMS
FDA03202200
DIN_CCTWS
HORN-314027101R;HORN-314027101L
ISO_CCTWS
HORN314027101R$$$$$;HORN314027101L$$$$$
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
125
mm
| Downloads | |
|---|---|
| 383_0125_32_06-ISO.XML | Download |
| 383_0125_32_06-DXF.DXF | Download |
| 383_0125_32_06-STP.STP | Download |
| 383_0125_32_06-DIN.XML | Download |
| Download all files | |
