217.0603.33 P20
Wendeschneidplatte
Materialnummer 217060333P20

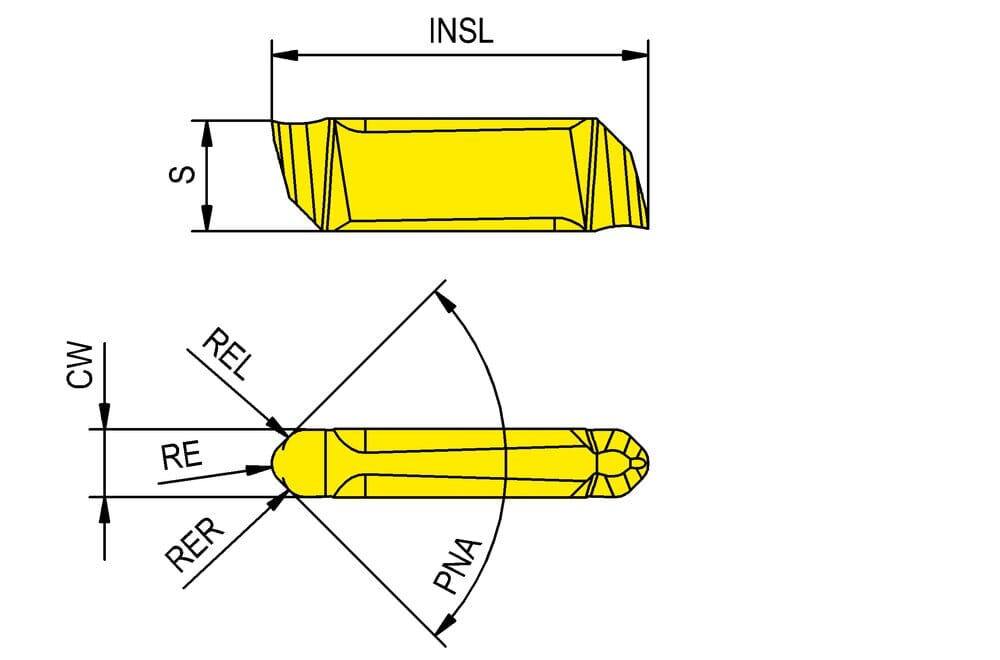

HORN Wendeschneidplatte 217.0603.33 P20 zum Drehen
Bitte beachten:Technologieinformationen
Freistichbreite (t1)
0.3 mm
Minimum Bohrungsdurchmesser (Dmin)
23 mm
eclass-shortcut
21-18-20-03
Freistich Grundbreite (g/f)
2.3 mm
ISO_SSC
HORN217030008N$$$$$
Katalog_SSC
21703
Plattensitzgröße (Größe)
3
Schneidplattenbreite (s)
3.3 mm
Eckenradius (r1)
0.6 mm
| Downloads | |
|---|---|
| 217_0603_33_P20-DXF.DXF | Download |
| 217_0603_33_P20-STP.STP | Download |
| 217_0603_33_P20-ISO.XML | Download |
| 217_0603_33_P20-DIN.XML | Download |
| Alle Dateien herunterladen | |
