306.0005.10 RC45
Schneidplatte
Materialnummer 306000510RC45

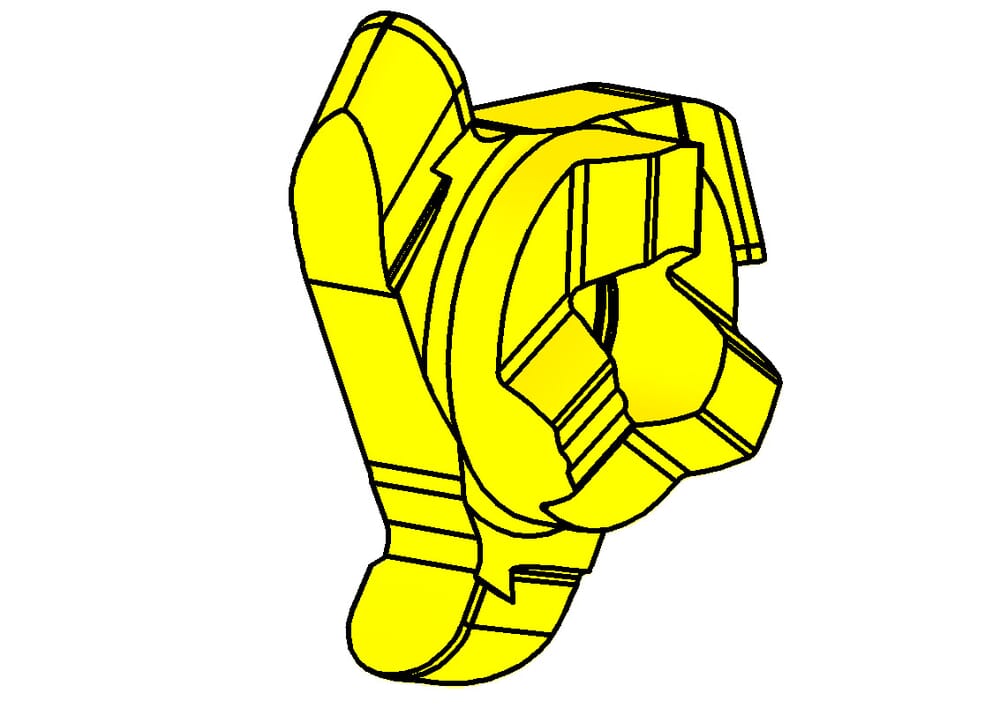

HORN Schneidplatte 306.0005.10 RC45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
11.7 mm
Zähnezahl (Z)
3 St.
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Schneidbreite (w)
1 mm
Maximale Frästiefe, Nuttiefe (tmax)
2.5 mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
3.2 mm
Radius, Vollradius (r)
0.5 mm
| Downloads | |
|---|---|
| 306_0005_10_RC45-ISO.XML | Download |
| 306_0005_10_RC45-DXF.DXF | Download |
| 306_0005_10_RC45-STP.STP | Download |
| 306_0005_10_RC45-DIN.XML | Download |
| Alle Dateien herunterladen | |
