306.0160.10.00 AS45
Schneidplatte
Materialnummer 30601601000AS45

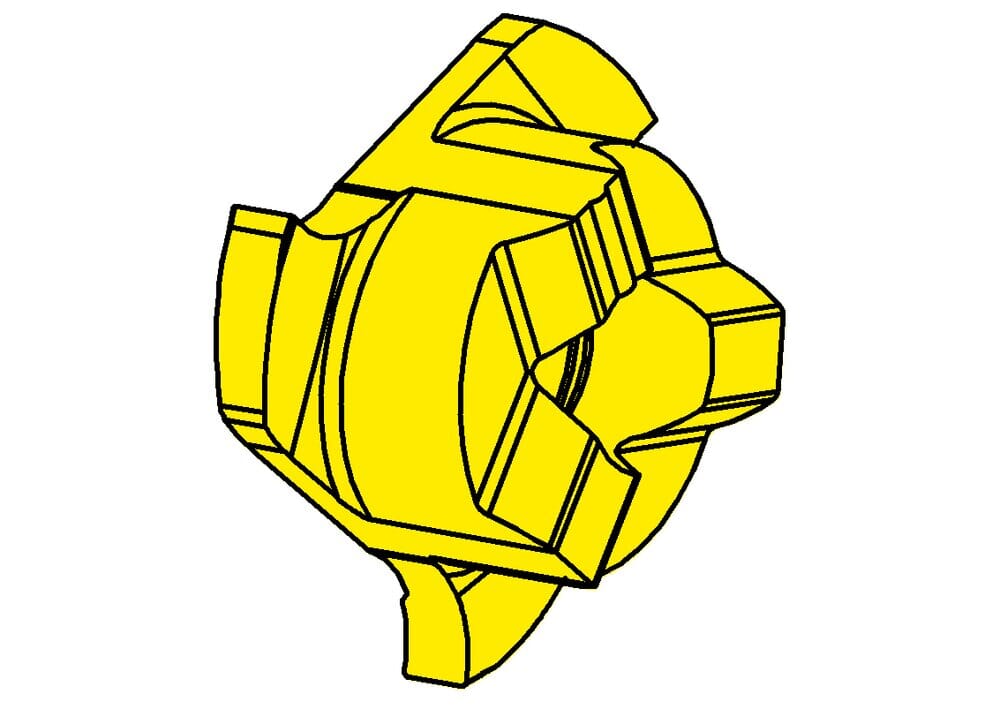

HORN Schneidplatte 306.0160.10.00 AS45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
9.7 mm
Zähnezahl (Z)
3 St.
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Schneidbreite (w)
1.71 mm
Maximale Frästiefe, Nuttiefe (tmax)
1.5 mm
Nennweite (Nw)
1.6 mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
3.2 mm
