308.0130.00 AS45
Insert
Materialnummer 308013000AS45
HORN Insert 308.0130.00 AS45 for Milling
Bitte beachten:Technologieinformationen

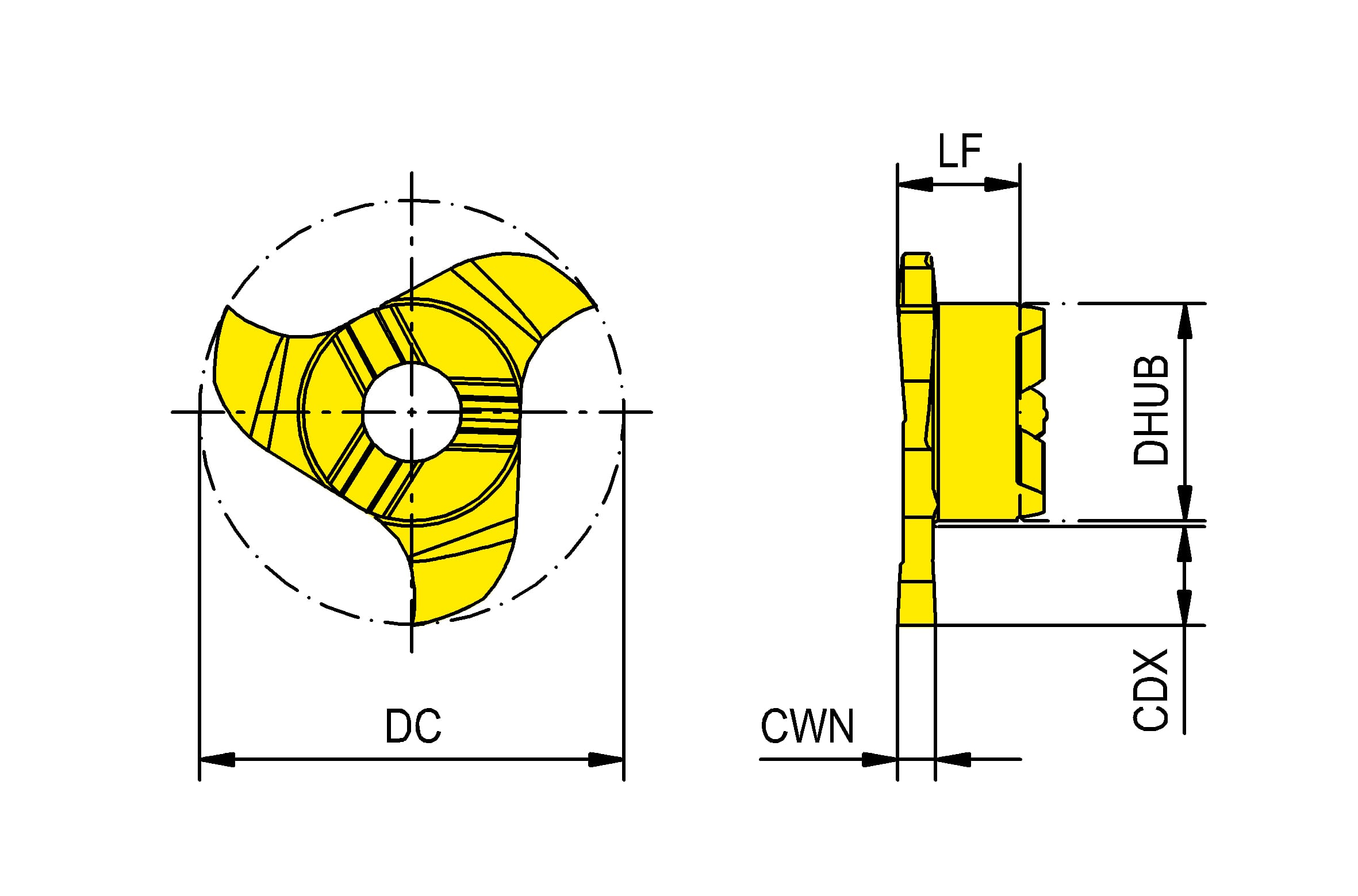

Wide retaining ring (RTRG)
1.3 mm
Cutting width minimum (CWN)
1.4 mm
Functional length (LF)
4.5 mm
hub diameter (DHUB)
8 mm
Cutting diameter (DC)
15.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 308_0130_00_AS45-ISO.XML | Download |
| 308_0130_00_AS45-DXF.DXF | Download |
| 308_0130_00_AS45-STP.STP | Download |
| 308_0130_00_AS45-DIN.XML | Download |
| Alle Dateien herunterladen | |
