311.0510.01 AS45
Schneidplatte
Materialnummer 311051001AS45

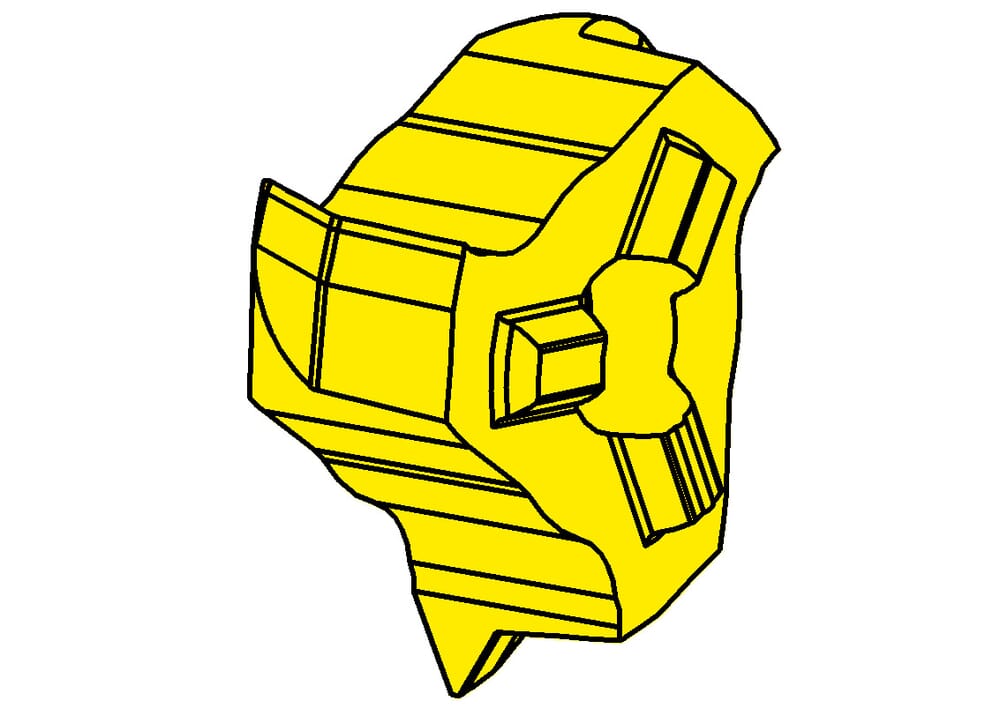

HORN Schneidplatte 311.0510.01 AS45 zum Gewinden
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
17.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Einstellmaß Länge (E)
5
mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.95
mm
Steigung (P)
1
mm
maximale Steigung (Pmax)
1
mm
Downloads | |
---|---|
311051001_20230112_141404884.STP | Download |
311051001_20210626_222700065.DXF | Download |
Alle Dateien herunterladen |
