606.0200.00 TA45
Schneidplatte
Materialnummer 606020000TA45

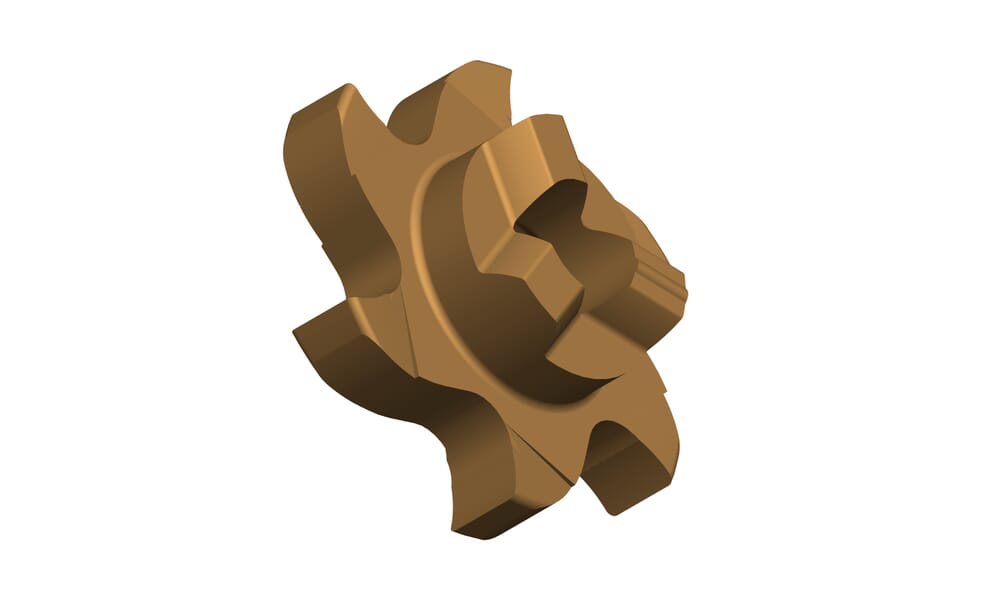

HORN Schneidplatte 606.0200.00 TA45 zum Fräsen
Bitte beachten:Technologieinformationen

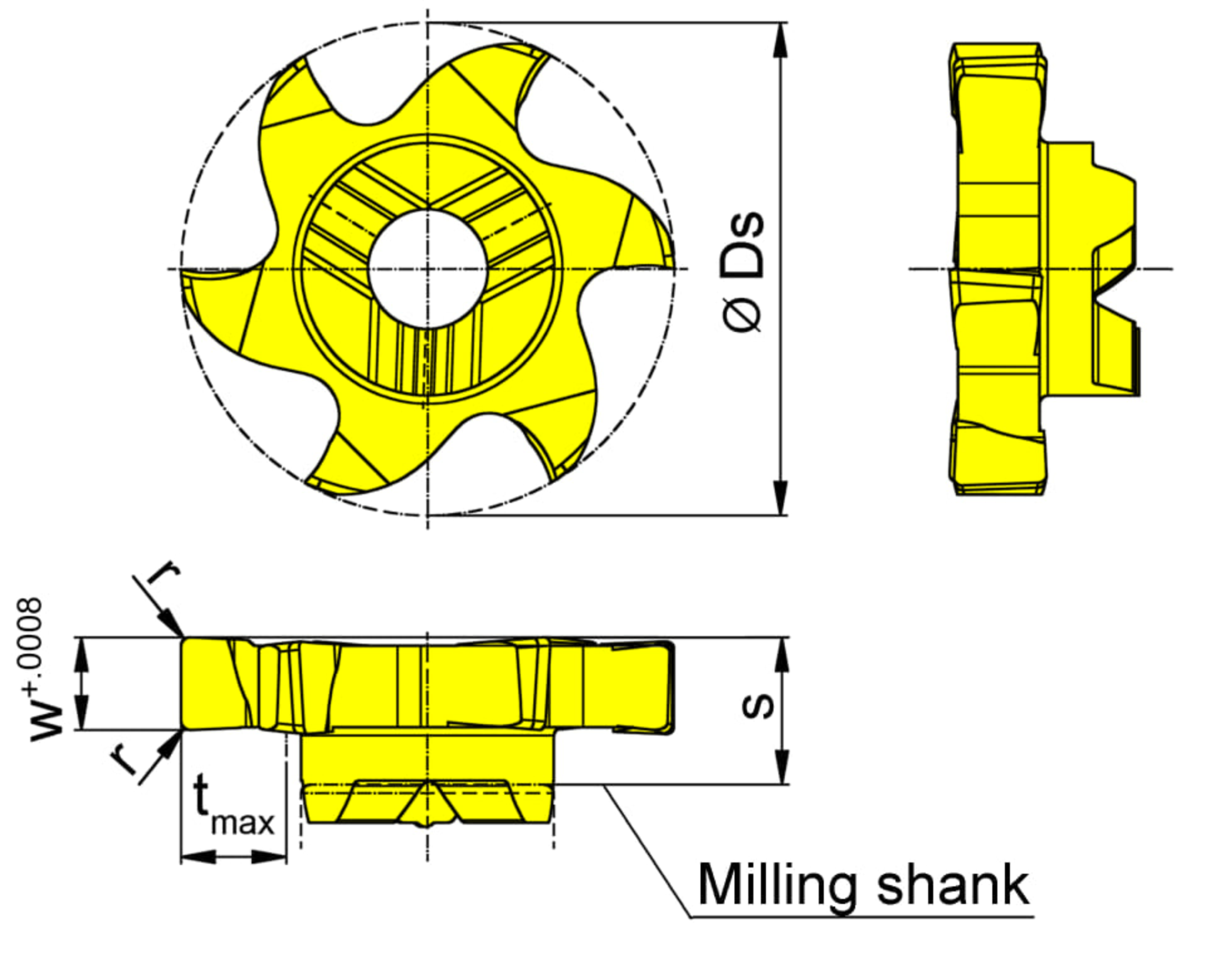

Schneidkreisdurchmesser (Ds)
11.7
mm
Zähnezahl (Z)
6
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Schneidbreite (w)
2
mm
Maximale Frästiefe, Nuttiefe (tmax)
2.5
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
3.5
mm
Eckenradius (r)
0.2
mm
Downloads | |
---|---|
606020000_20230112_144201646.STP | Download |
606020000_20210629_110348263.DXF | Download |
Alle Dateien herunterladen |
