606.0510.02 TA45
Schneidplatte
Materialnummer 606051002TA45

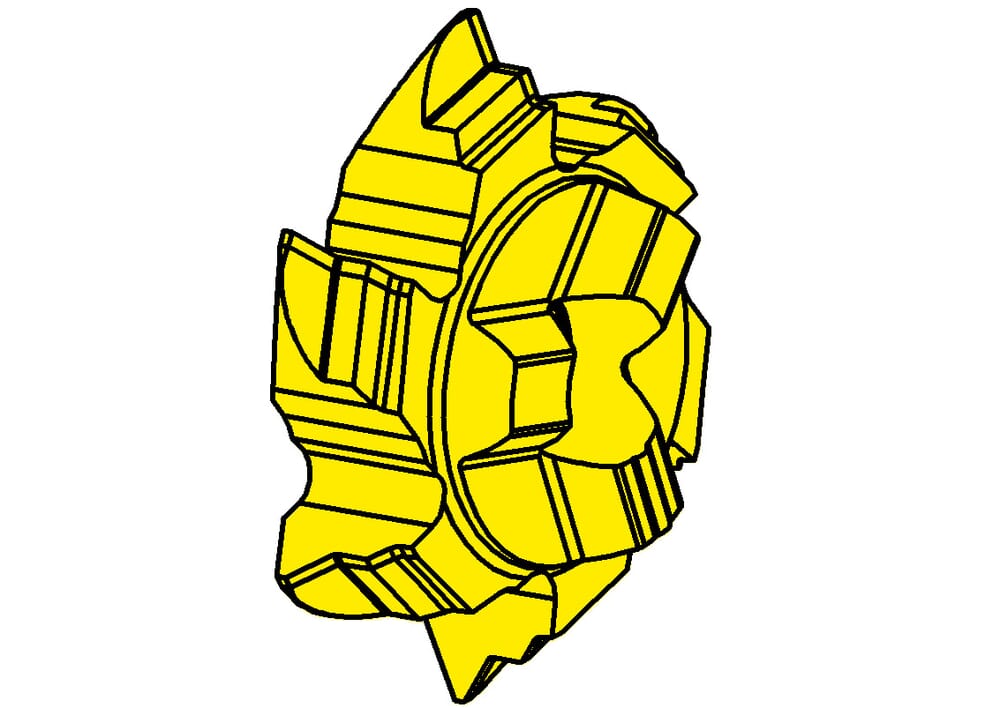

HORN Schneidplatte 606.0510.02 TA45 zum Gewinden
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
11.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Einstellmaß Länge (E)
2.5
mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.2
mm
Steigung (P)
1
mm
| Downloads | |
|---|---|
| 606_0510_02_TA45-DXF.DXF | Download |
| 606_0510_02_TA45-STP.STP | Download |
| 606_0510_02_TA45-DIN.XML | Download |
| Alle Dateien herunterladen | |
