606.0720.01 TA45
Schneidplatte
Materialnummer 606072001TA45

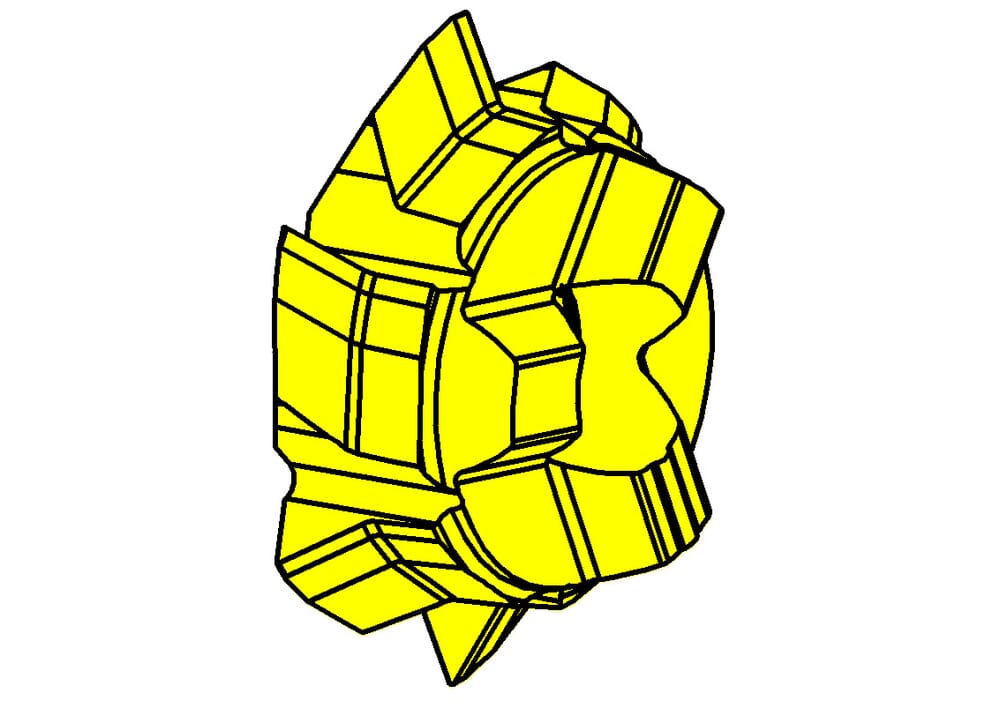

HORN Schneidplatte 606.0720.01 TA45 zum Gewinden
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
11.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Einstellmaß Länge (E)
1.95
mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.15
mm
Steigung (P)
1
mm
maximale Steigung (Pmax)
2
mm
Downloads | |
---|---|
606072001_20230112_144242487.STP | Download |
606072001.DXF | Download |
Alle Dateien herunterladen |
