L108.0510.01 EG55
Schneidplatte
Materialnummer L108051001EG55

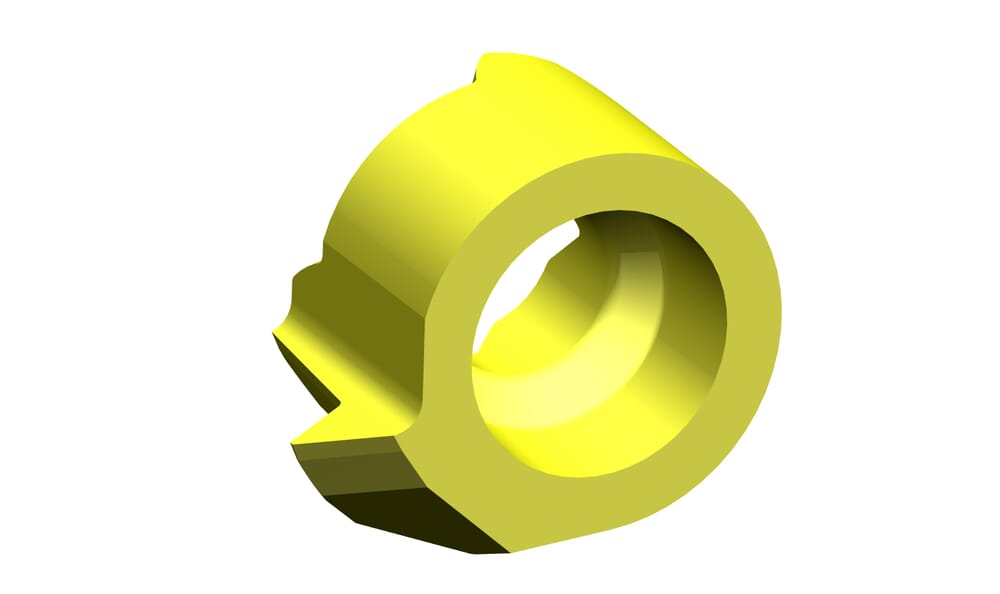

HORN Schneidplatte L108.0510.01 EG55 zum Gewinden
Bitte beachten:Technologieinformationen
Verzahnungsdurchmesser, Kopfdurchmesser (d)
6 mm
maximale Steigung (Pmax)
1.25 mm
Steigung (P)
1 mm
Kleinster Bohrungsdurchmesser (Dmin)
8 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.6 mm
Einstellmaß Länge (E)
2.8 mm
Schneidkreisdurchmesser (Ds)
9.6 mm
Schneidplattenbreite (a)
7.8 mm
Einstellmaß radial (f)
4.8 mm
Katalog_SSC
108060L
ISO_SSC
HORN108060$84L$$$$$
eclass-shortcut
21-18-20-11
Zähnezahl (Z)
1 St.
