L109.0150.4.7 TH35
Schneidplatte
Materialnummer L109015047TH35

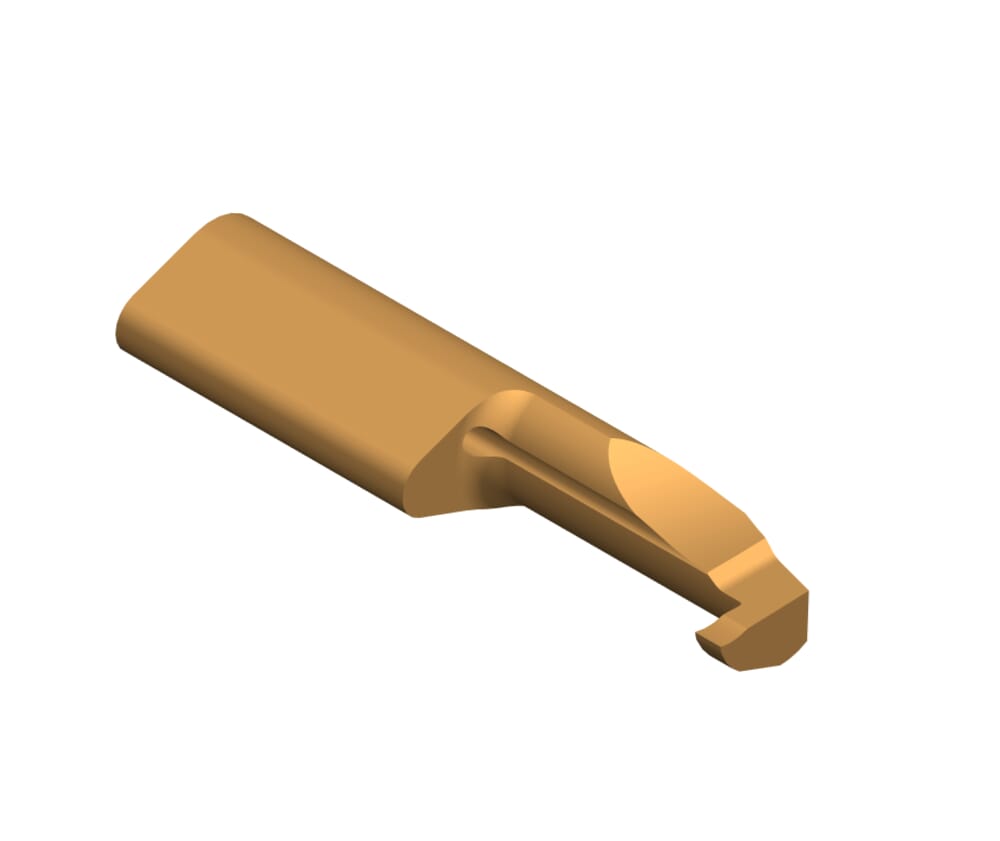

HORN Schneidplatte L109.0150.4.7 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Schneidbreite (w)
1.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
7 mm
Gesamtlänge (l5)
43 mm
Einstellmaß radial (f)
3.8 mm
Halsdurchmesser (d)
4 mm
Halslänge (l2)
25 mm
Katalog_SSC
109140
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2.5 mm
Kopfmaß (a)
6.7 mm
| Downloads | |
|---|---|
| L109_0150_4_7_TH35-DXF.DXF | Download |
| L109_0150_4_7_TH35-STP.STP | Download |
| L109_0150_4_7_TH35-ISO.XML | Download |
| L109_0150_4_7_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
