L109.1828.04.4.6 TH35
Schneidplatte
Materialnummer L10918280446TH35

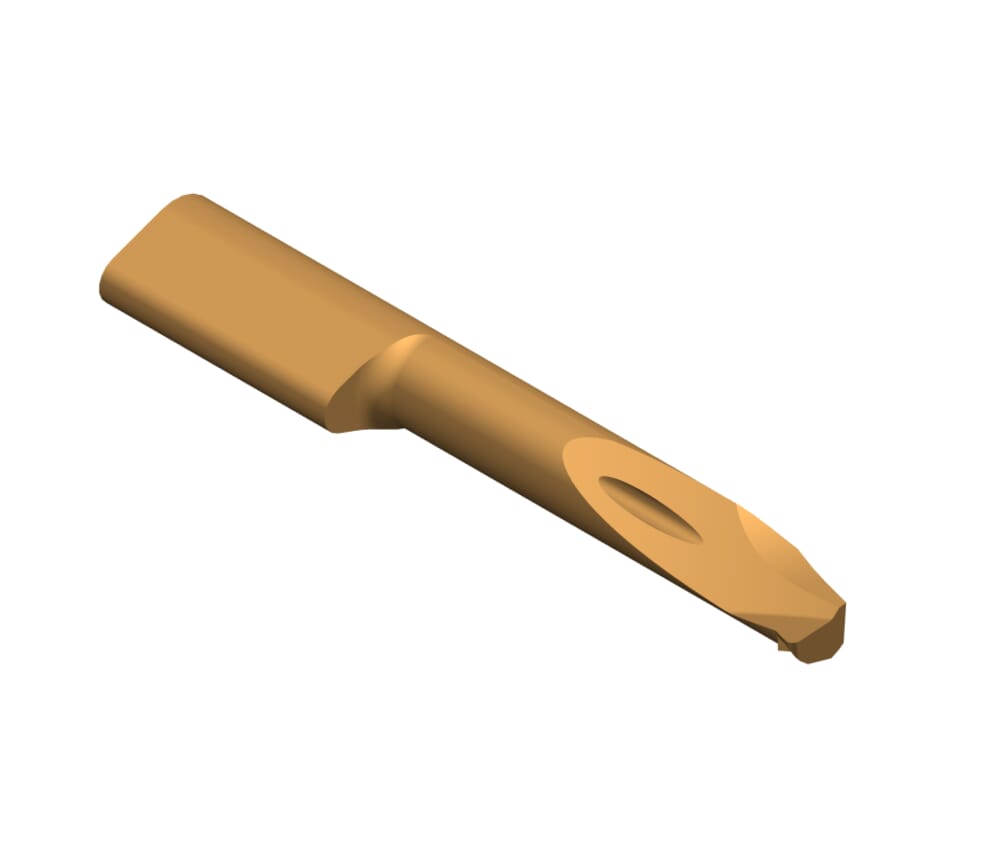

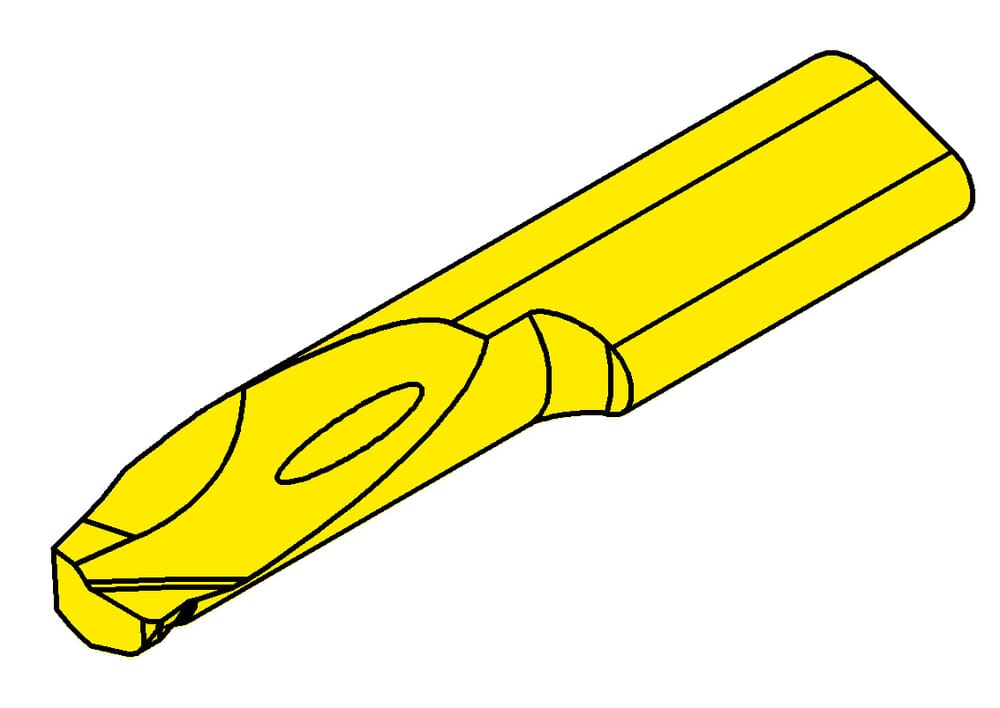

HORN Schneidplatte L109.1828.04.4.6 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Katalog_SSC
109140
Kleinster Bohrungsdurchmesser (Dmin)
6 mm
Gesamtlänge (l5)
43 mm
Einstellmaß radial (f)
2.8 mm
Halsdurchmesser (d)
5 mm
Halslänge (l2)
25 mm
ISO_SSC
HORN109140$95N$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
0.4 mm
Kopfmaß (a)
5.7 mm
Spitzenradius (r)
0.4 mm
| Downloads | |
|---|---|
| L109_1828_04_4_6_TH35-DXF.DXF | Download |
| L109_1828_04_4_6_TH35-STP.STP | Download |
| L109_1828_04_4_6_TH35-ISO.XML | Download |
| L109_1828_04_4_6_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
