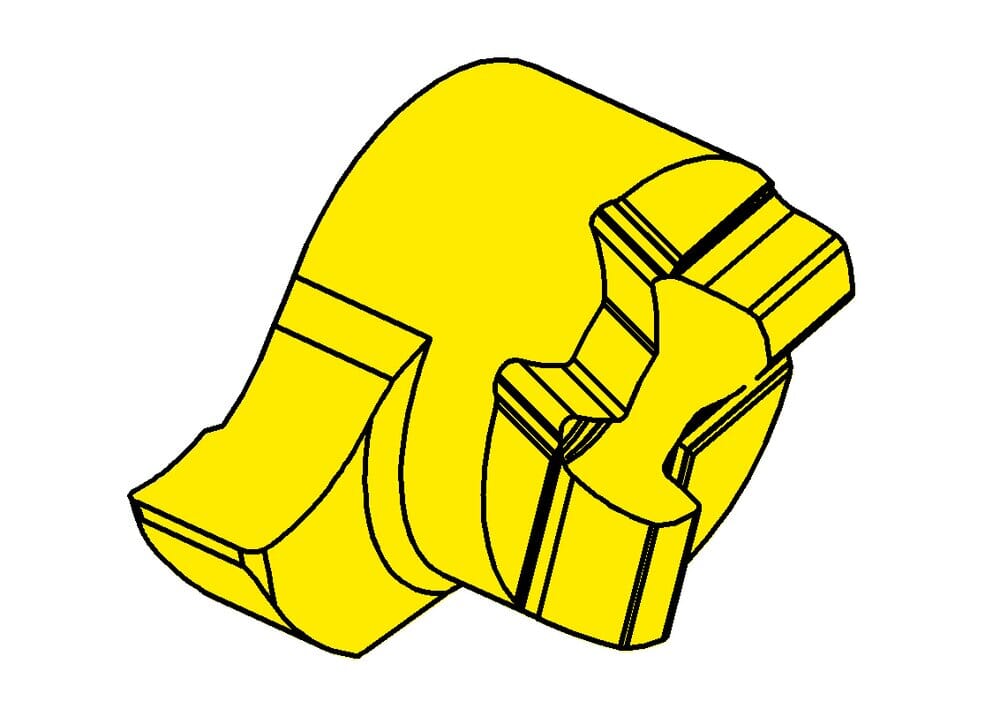

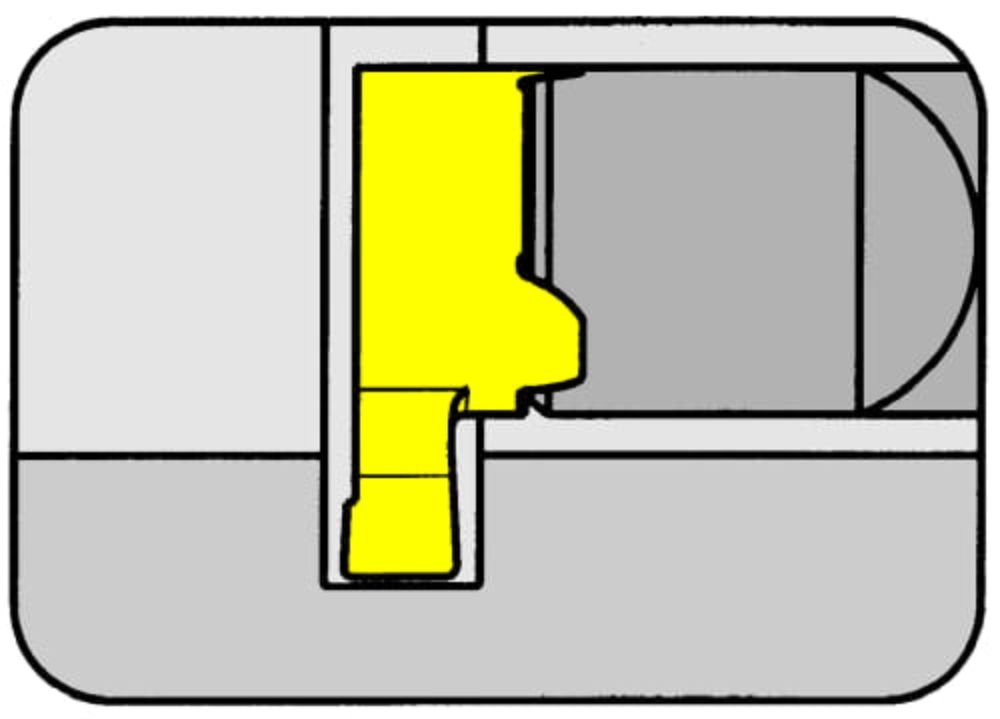

L10P.0200.1.02 TH35
Schneidplatte
Materialnummer L10P0200102TH35
HORN Schneidplatte L10P.0200.1.02 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Einstellmaß radial (f)
5.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
9 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.6 mm
Eckenradius (r)
0.2 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
6 mm
Kopfmaß (a)
8.5 mm
Schneidbreite (w)
2 mm
Katalog_SSC
10P060L
ISO_SSC
HORN10P060$84L$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2 mm
| Downloads | |
|---|---|
| L10P_0200_1_02_TH35-DXF.DXF | Download |
| L10P_0200_1_02_TH35-STP.STP | Download |
| L10P_0200_1_02_TH35-ISO.XML | Download |
| L10P_0200_1_02_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
