L10P.0300.1.02 EG55
Schneidplatte
Materialnummer L10P0300102EG55

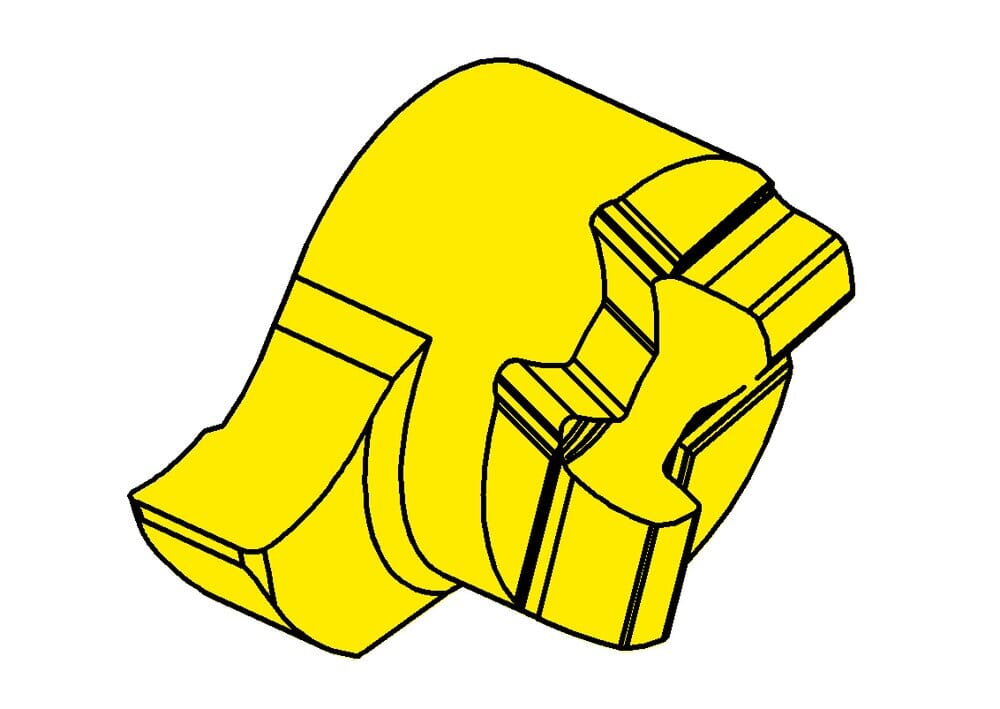

HORN Schneidplatte L10P.0300.1.02 EG55 zum Drehen
Bitte beachten:Technologieinformationen
Einstellmaß radial (f)
5.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
9 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.6 mm
Eckenradius (r)
0.2 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
6 mm
Kopfmaß (a)
8.5 mm
Schneidbreite (w)
3 mm
Katalog_SSC
10P060L
ISO_SSC
HORN10P060$84L$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2 mm
