L110.0100.7.8 EG35
Schneidplatte
Materialnummer L110010078EG35

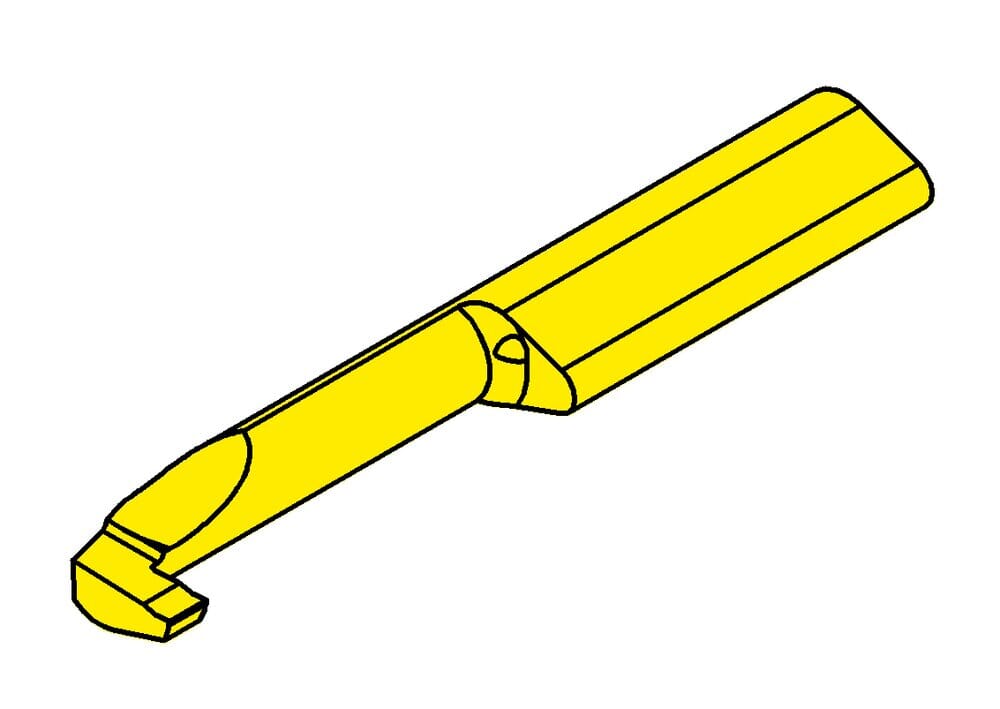

HORN Schneidplatte L110.0100.7.8 EG35 zum Drehen
Bitte beachten:Technologieinformationen
Kleinster Bohrungsdurchmesser (Dmin)
8
mm
Gesamtlänge (l5)
70
mm
Einstellmaß radial (f)
4
mm
Halsdurchmesser (d)
4.2
mm
Schneidbreite (w)
1
mm
Katalog_SSC
110260
DIN_SSC
HORN-11026095N
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2.8
mm
Kopfmaß (a)
7.4
mm
Halslänge (l2)
40
mm
