L110.0250.7.8 EG35
Insert
Materialnummer L110025078EG35
HORN Insert L110.0250.7.8 EG35 for Turning
Bitte beachten:Technologieinformationen

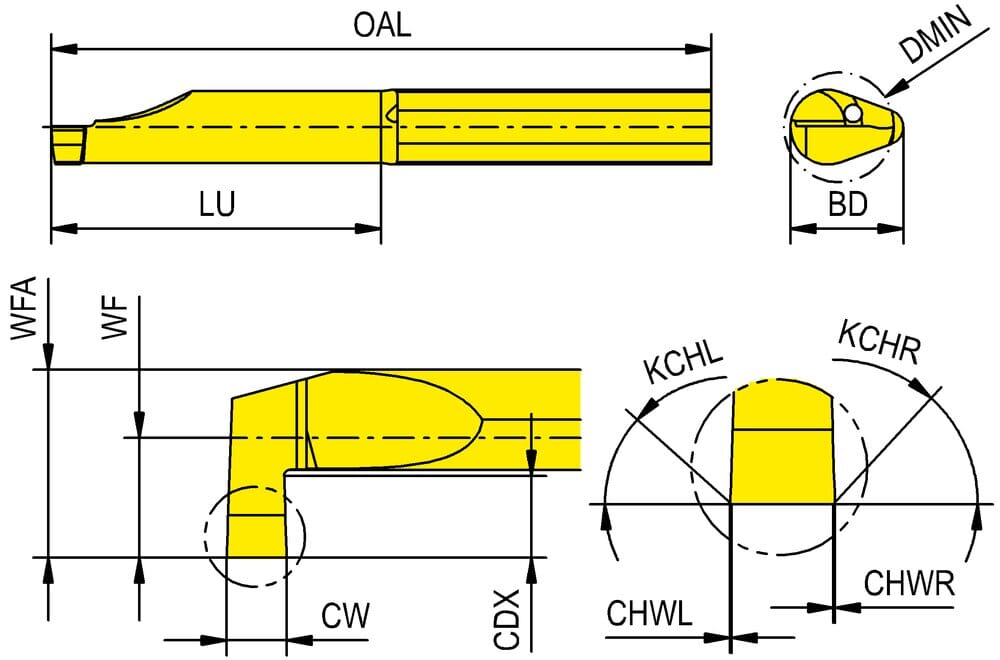

Corner chamfer width right hand (CHWR)
0.04 mm
Body diameter (BD)
10.3 mm
Cutting depth maximum (CDX)
2.8 mm
Cutting width (CW)
2.5 mm
Minimum bore diameter (DMIN)
8 mm
Usable length (LU)
40 mm
Overall length (OAL)
70 mm
Funktional width (WF)
4 mm
Corner chamfer width left hand (CHWL)
0.04 mm
Corner chamfer angle left hand (KCHL)
45 °
Corner chamfer angle right hand (KCHR)
45 °
Dimension a at working width (WFA)
7.4 mm
Cutting edge count (CEDC)
1
| Downloads | |
|---|---|
| L110_0250_7_8_EG35-DXF.DXF | Download |
| L110_0250_7_8_EG35-STP.STP | Download |
| L110_0250_7_8_EG35-ISO.XML | Download |
| L110_0250_7_8_EG35-DIN.XML | Download |
| Alle Dateien herunterladen | |
