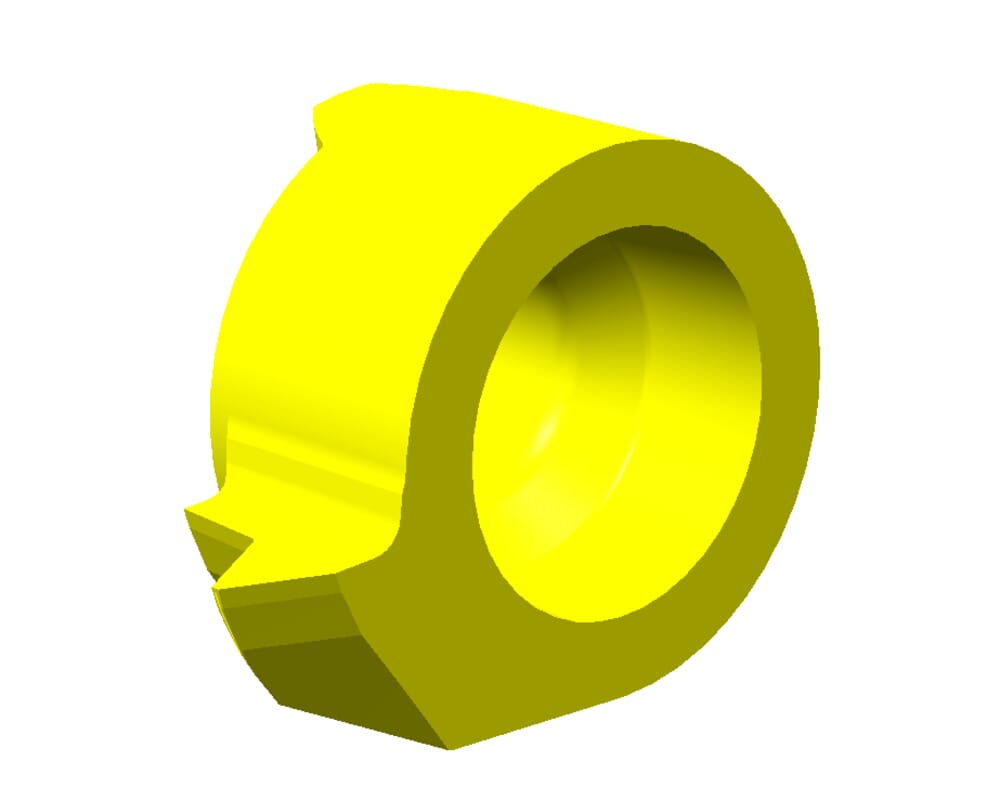

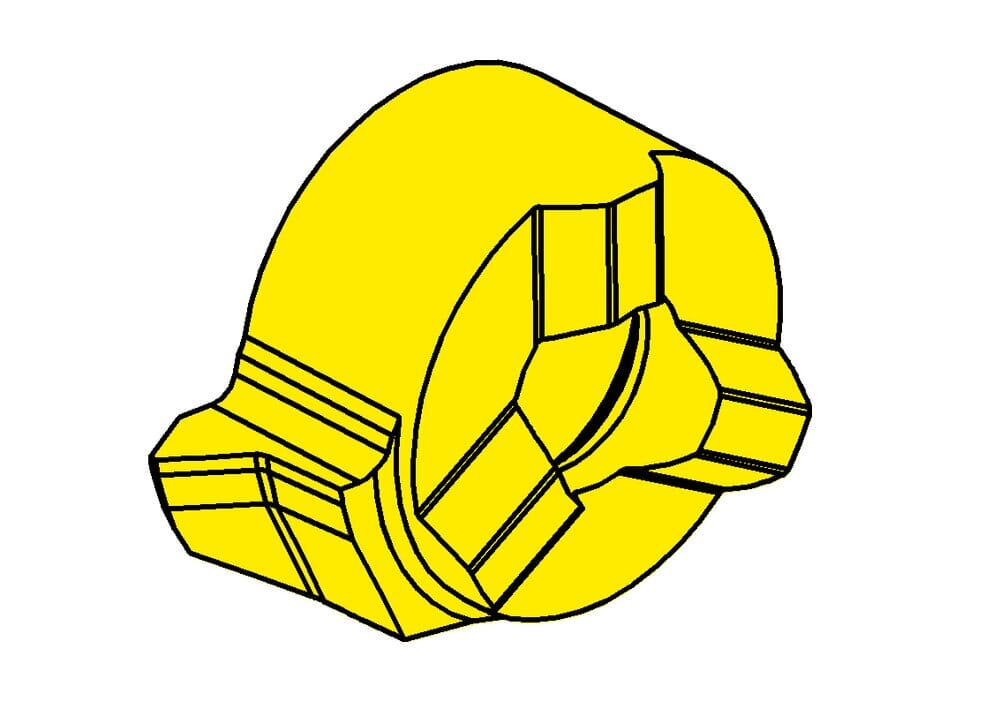

L111.0815.01 TH35
Schneidplatte
Materialnummer L111081501TH35
HORN Schneidplatte L111.0815.01 TH35 zum Gewinden
Bitte beachten:Technologieinformationen
DIN_SSC
HORN-11108084L

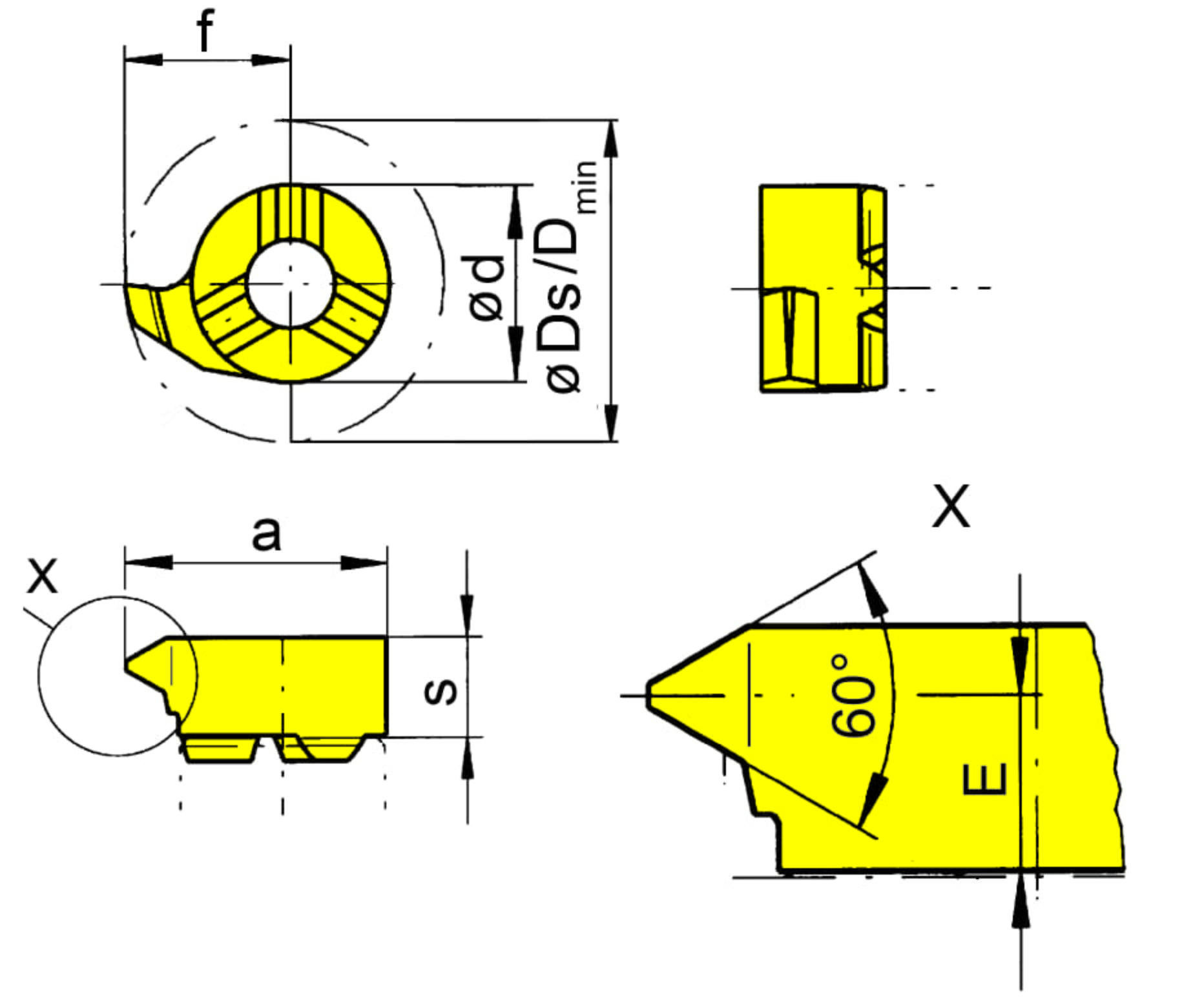

maximale Steigung (Pmax)
1.75
mm
Steigung (P)
1.5
mm
Kleinster Bohrungsdurchmesser (Dmin)
11
mm
Schneidplattenhöhe, Schneidplattendicke (s)
4.15
mm
Einstellmaß Länge (E)
3.3
mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
8
mm
Schneidplattenbreite (a)
10.7
mm
Einstellmaß radial (f)
6.7
mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
Schneidkreisdurchmesser (Ds)
13.4
mm
Downloads | |
---|---|
L111081501_20230112_192115271.STP | Download |
L111081501_20210627_164506496.DXF | Download |
Alle Dateien herunterladen |
