L111.1020.01 TH35
Schneidplatte
Materialnummer L111102001TH35

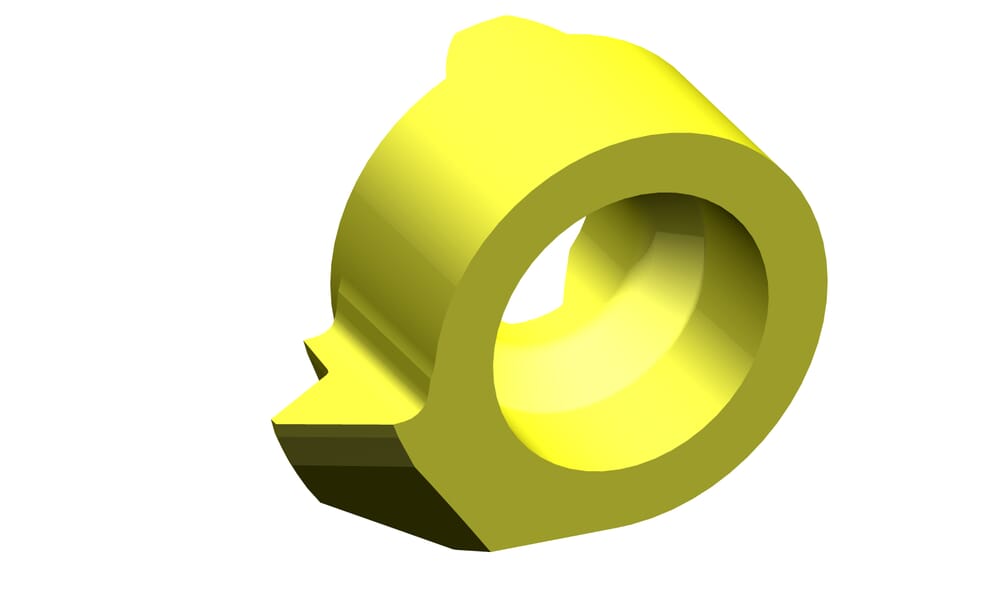

HORN Schneidplatte L111.1020.01 TH35 zum Gewinden
Bitte beachten:Technologieinformationen
Einstellmaß Länge (E)
3 mm
maximale Steigung (Pmax)
2 mm
Steigung (P)
2 mm
Kleinster Bohrungsdurchmesser (Dmin)
11 mm
Schneidplattenhöhe, Schneidplattendicke (s)
4.15 mm
Schneidkreisdurchmesser (Ds)
13.4 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
8 mm
Schneidplattenbreite (a)
10.7 mm
Einstellmaß radial (f)
6.7 mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| L111_1020_01_TH35-DXF.DXF | Download |
| L111_1020_01_TH35-STP.STP | Download |
| L111_1020_01_TH35-ISO.XML | Download |
| L111_1020_01_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
