L11P.0200.2.02 EG55
Schneidplatte
Materialnummer L11P0200202EG55

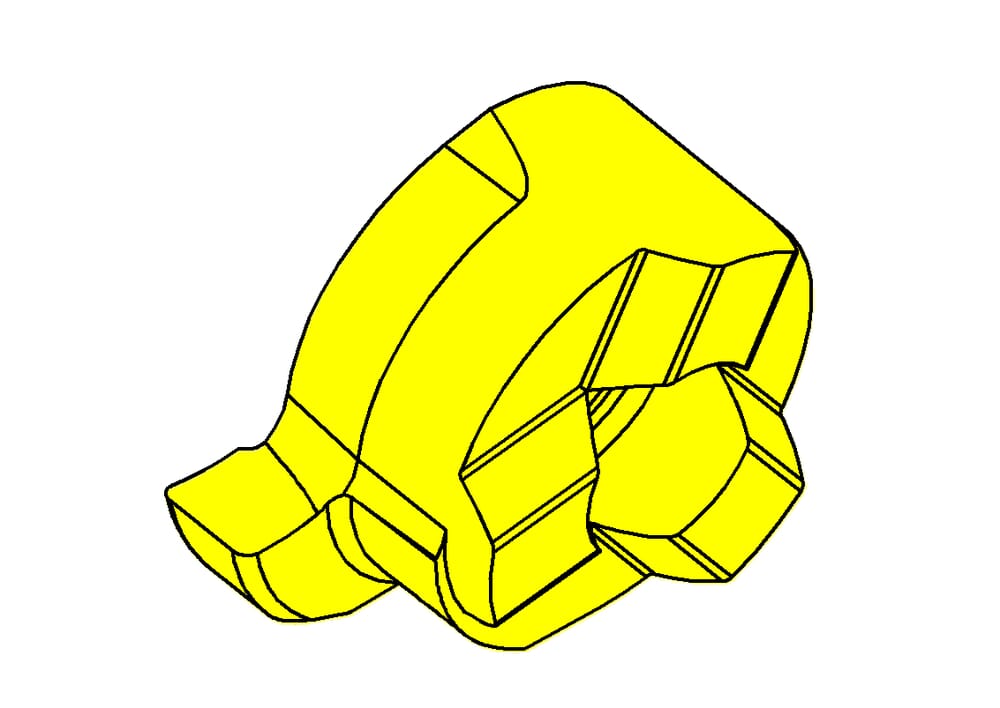

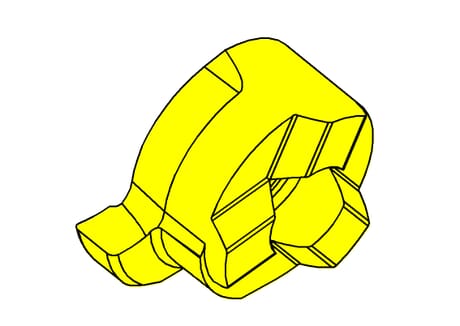

HORN Schneidplatte L11P.0200.2.02 EG55 zum Drehen
Bitte beachten:Technologieinformationen

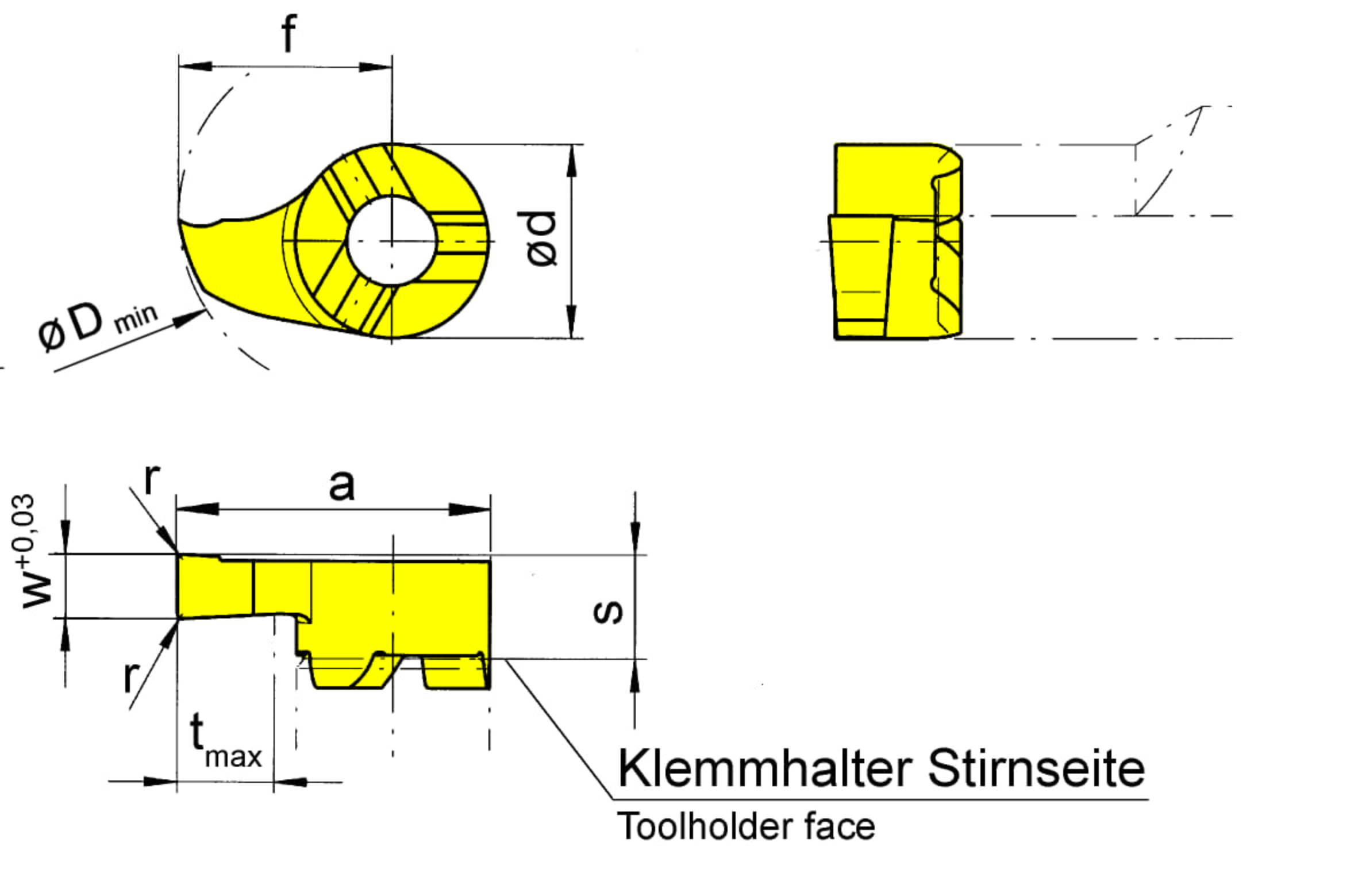

Einstellmaß radial (f)
7.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
11.5 mm
Schneidplattenhöhe, Schneidplattendicke (s)
4.2 mm
Eckenradius (r)
0.2 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
7 mm
Kopfmaß (a)
11 mm
Schneidbreite (w)
2 mm
Katalog_SSC
11P070L
ISO_SSC
HORN11P070$84L$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
3.5 mm
| Downloads | |
|---|---|
| L11P_0200_2_02_EG55-DXF.DXF | Download |
| L11P_0200_2_02_EG55-STP.STP | Download |
| L11P_0200_2_02_EG55-ISO.XML | Download |
| L11P_0200_2_02_EG55-DIN.XML | Download |
| Alle Dateien herunterladen | |
