L11P.0250.1.02 TH35
Schneidplatte
Materialnummer L11P0250102TH35

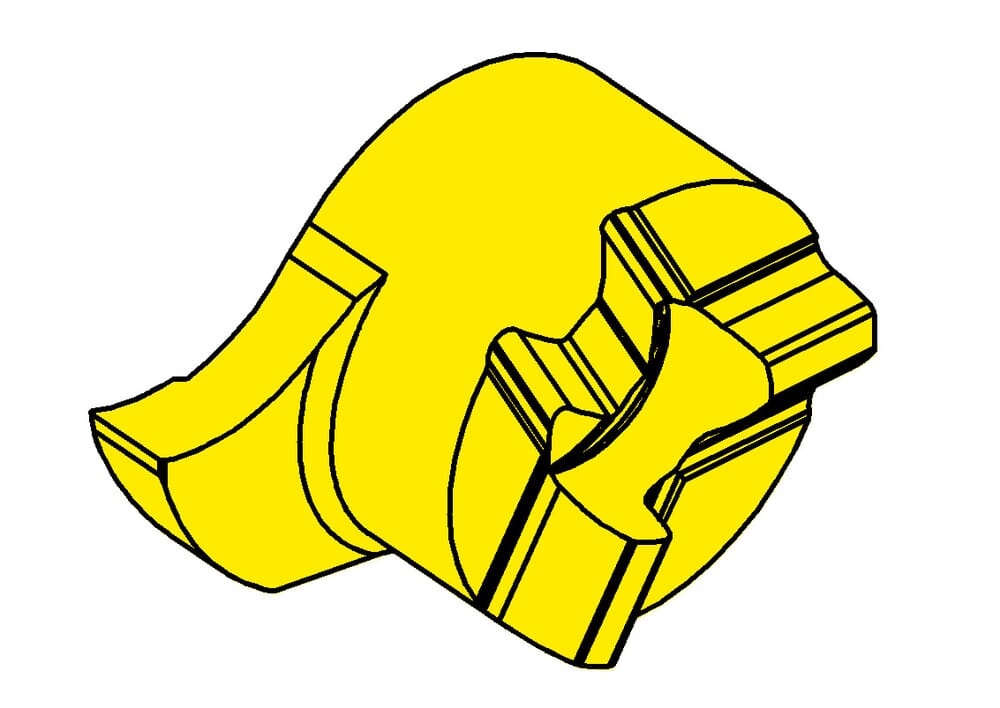

HORN Schneidplatte L11P.0250.1.02 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Einstellmaß radial (f)
6.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
10.5 mm
Schneidplattenhöhe, Schneidplattendicke (s)
4.2 mm
Eckenradius (r)
0.2 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
7 mm
Kopfmaß (a)
10 mm
Schneidbreite (w)
2.5 mm
Katalog_SSC
11P070L
ISO_SSC
HORN11P070$84L$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2.5 mm
