R106.1831.1.02 TH35
Schneidplatte
Materialnummer R1061831102TH35

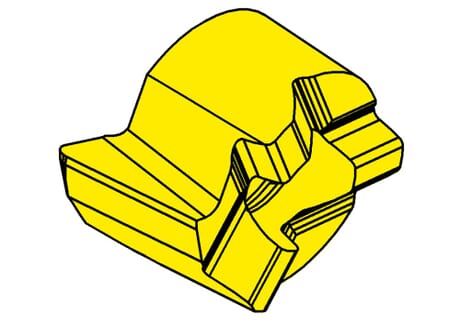

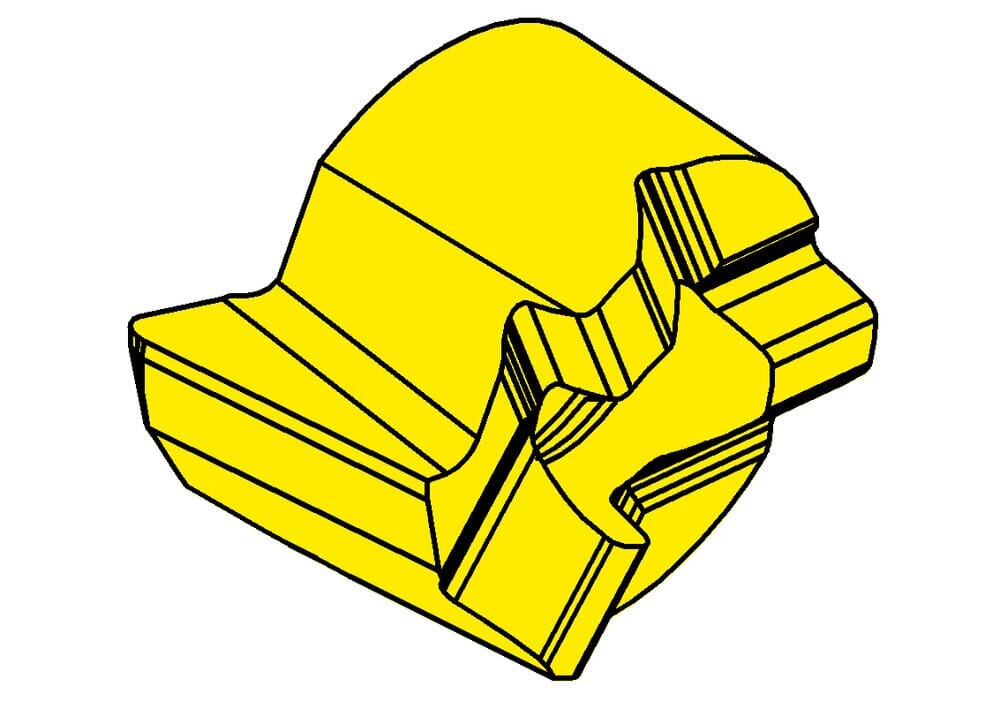

HORN Schneidplatte R106.1831.1.02 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Spitzenradius (r)
0.2 mm
Kopfmaß (a)
5.4 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN106044$84R$$$$$
Katalog_SSC
106044R
Einstellmaß radial (f)
3.2 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
4.4 mm
Schneidplattenhöhe, Schneidplattendicke (s)
2.8 mm
Kleinster Bohrungsdurchmesser (Dmin)
6 mm
