R110.0250.7.8 TN35
Schneidplatte
Materialnummer R110025078TN35

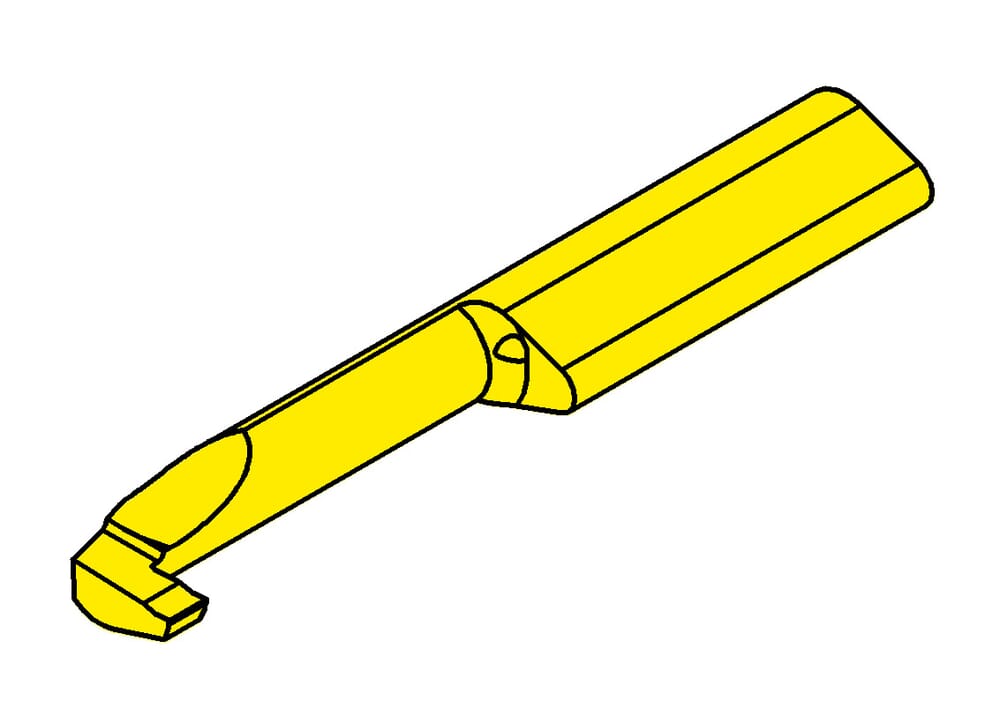

HORN Schneidplatte R110.0250.7.8 TN35 zum Drehen
Bitte beachten:Technologieinformationen
Schneidbreite (w)
2.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
8 mm
Gesamtlänge (l5)
70 mm
Einstellmaß radial (f)
4 mm
Halsdurchmesser (d)
4.2 mm
Halslänge (l2)
40 mm
Katalog_SSC
110260
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2.8 mm
Kopfmaß (a)
7.4 mm
| Downloads | |
|---|---|
| R110_0250_7_8_TN35-DXF.DXF | Download |
| R110_0250_7_8_TN35-STP.STP | Download |
| R110_0250_7_8_TN35-ISO.XML | Download |
| R110_0250_7_8_TN35-DIN.XML | Download |
| Alle Dateien herunterladen | |
