1R4.P.Y.I.0002.W.20 PD11

Insert

WERKSTOFF_N.EPS

WERKSTOFF_O.EPS

INNEN_BOHRUNG_DREHEN_FASE.EPS

Part number 1R4PYI0002W20PD11

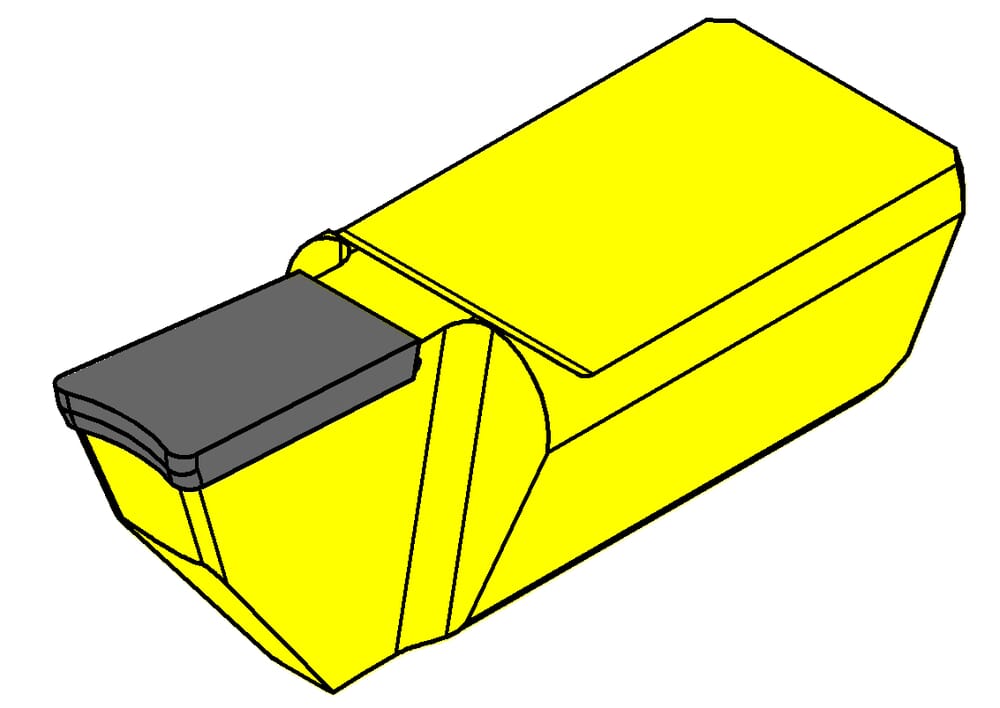

HORN Insert 1R4.P.Y.I.0002.W.20 PD11 for Turning

Please note:Technical instructions

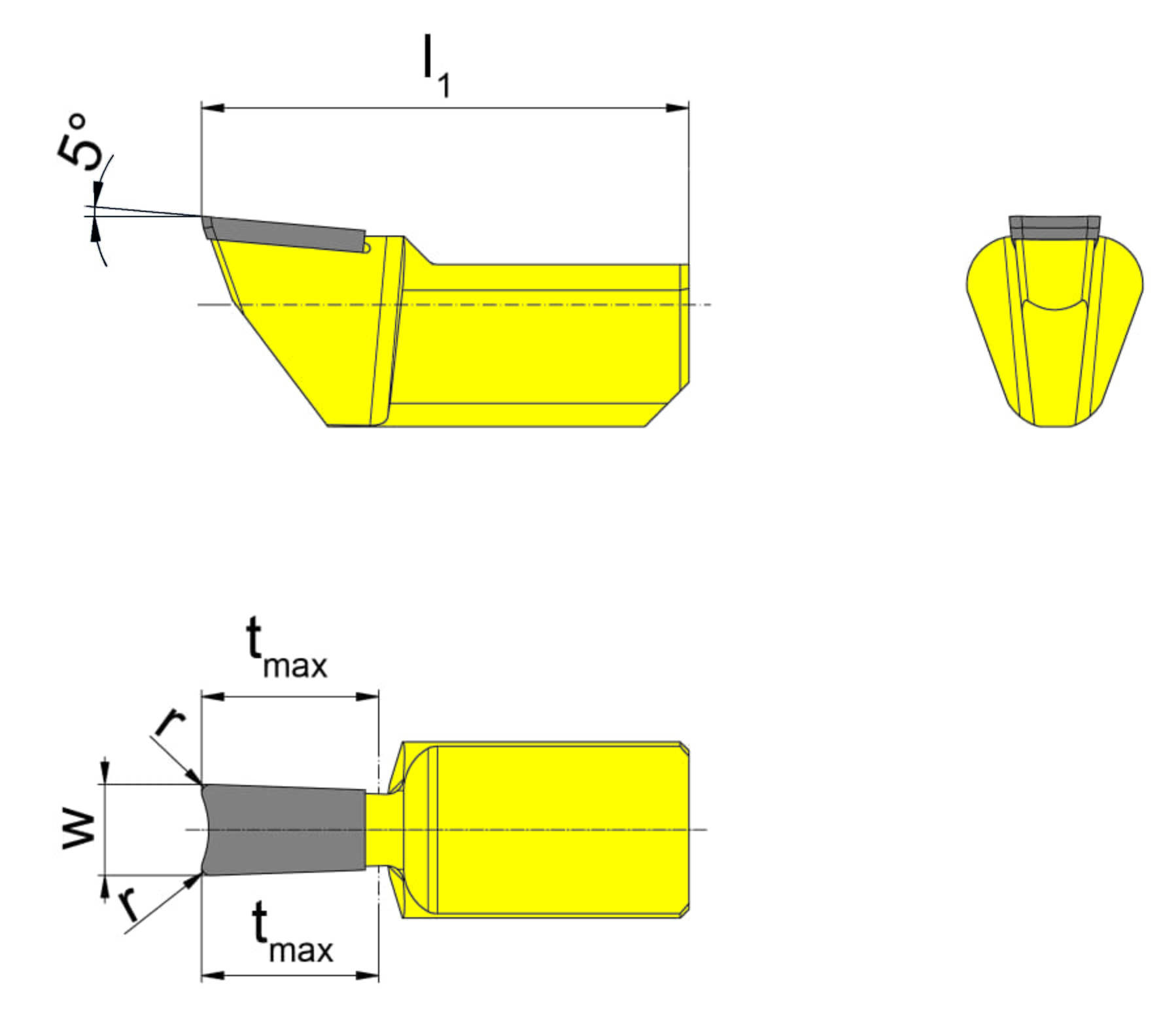

Maximum depth of groove (tmax)

4 mm

Katalog_SSC

1R403

Width of groove (w)

2 mm

Corner radius (r)

0.2 mm

Total length (l1)

11 mm

Smallest bore diameter (Dmin)

12.7 mm
