1R4.P.Y.I.0005.R.10 PD11

Insert

INNEN_EINSTECHEN.EPS

INNEN_BOHRUNG_DREHEN_FASE.EPS

WERKSTOFF_N.EPS

WERKSTOFF_O.EPS

Part number 1R4PYI0005R10PD11

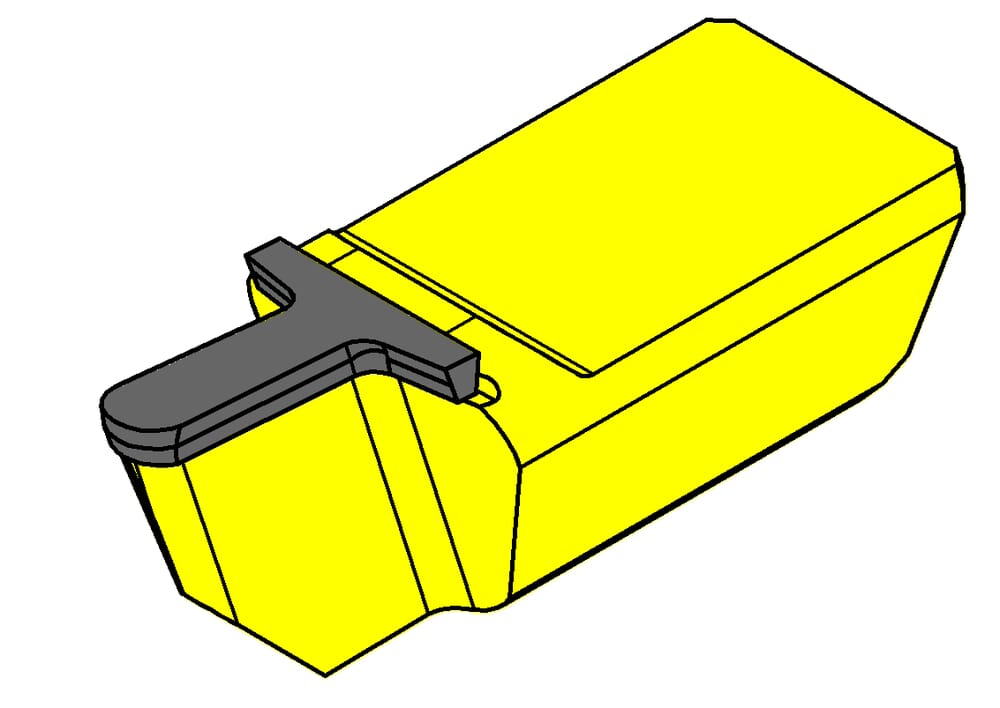

HORN Insert 1R4.P.Y.I.0005.R.10 PD11 for Turning

Please note:Technical instructions

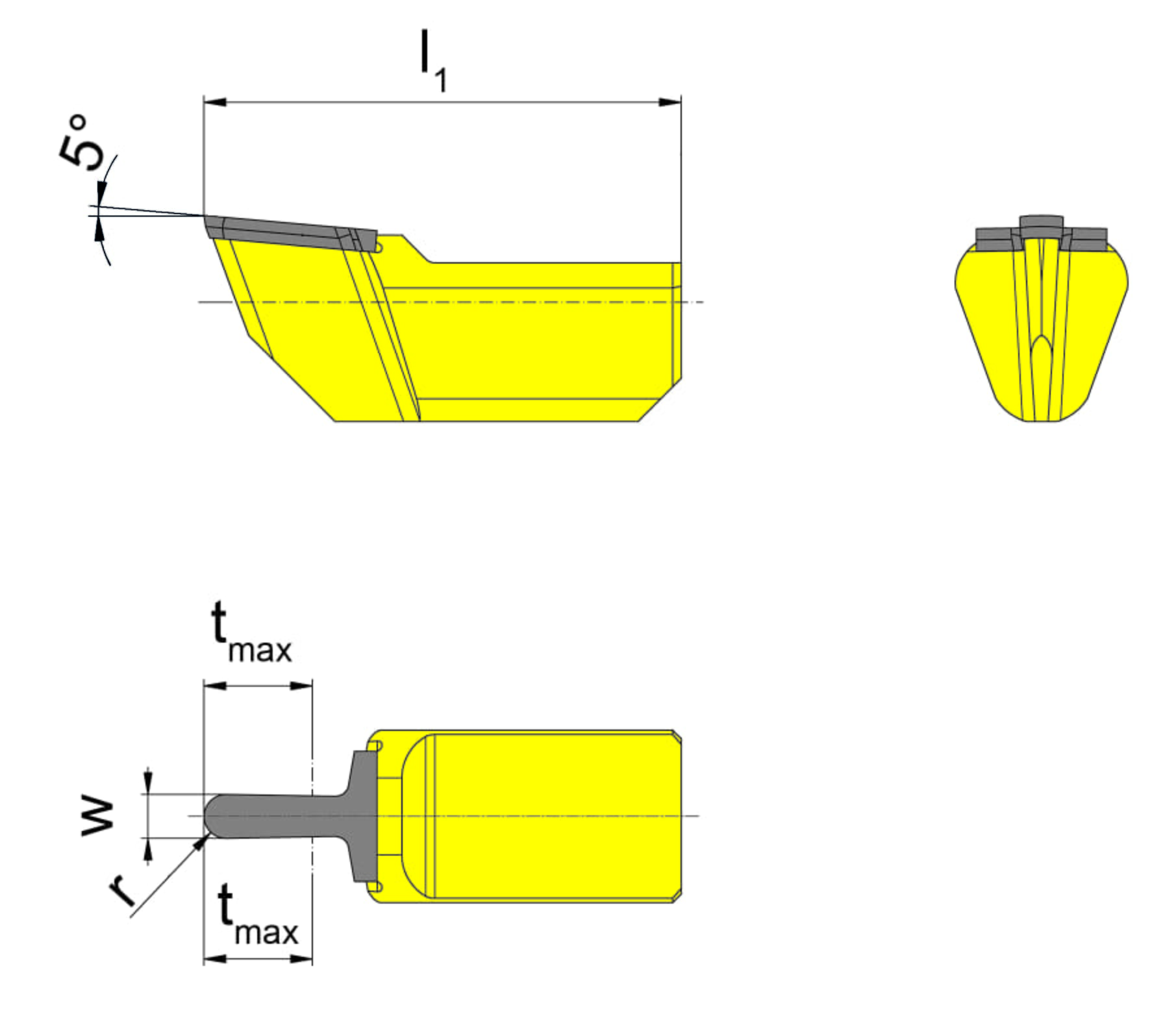

Maximum depth of groove (tmax)

3 mm

Katalog_SSC

1R403

Width of groove (w)

1 mm

Radius, full-radius (r)

0.5 mm

Total length (l1)

11 mm

Smallest bore diameter (Dmin)

12.7 mm
