217.0020.40 P20
Inserts
Part number 217002040P20

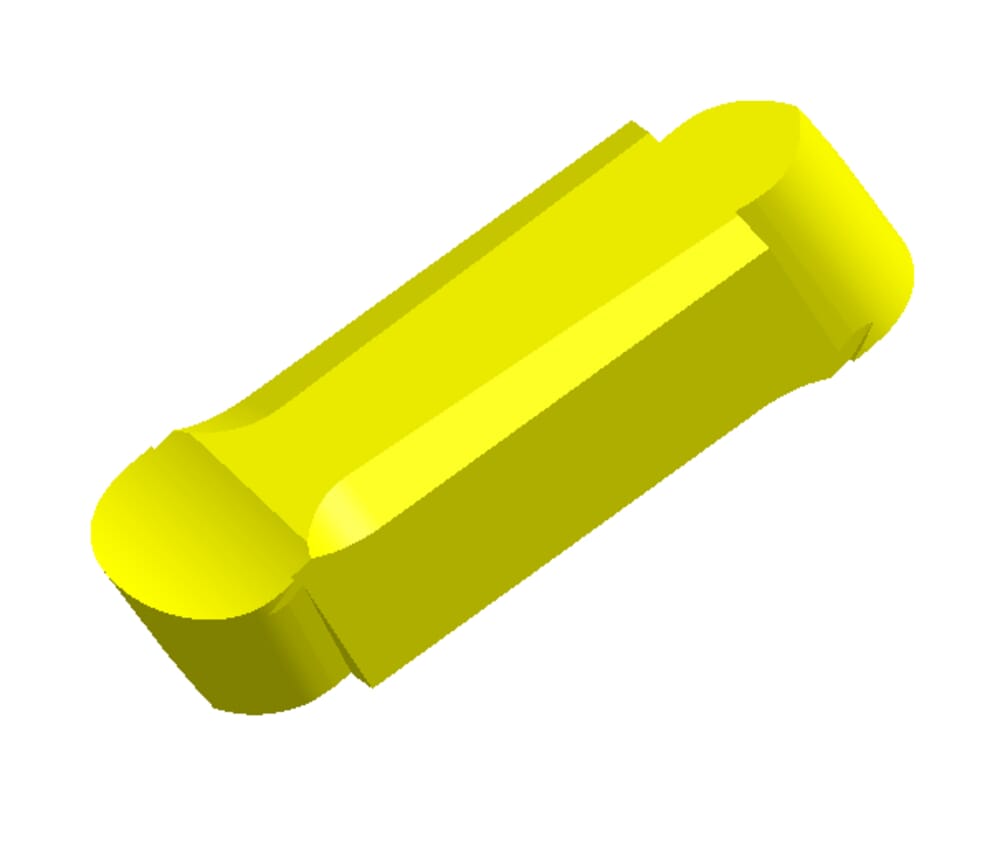

HORN Inserts 217.0020.40 P20 for Turning
Please note:Technical instructions
Cancellation (a1)
0.1 mm
Minimum drilling diameter (Dmin)
20 mm
Full radius (r1)
2 mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN217040008N$$$$$
Katalog_SSC
21704
Plating seat size (Größe)
4
Width of groove (w)
4 mm
Size of groove (t1)
1.25 mm
| Downloads | |
|---|---|
| 217002040_20230112_152721099.STP | Download |
| 217002040_20210629_100249284.DXF | Download |
| Download all files | |
