217.0020.40 TN35
Inserts
Part number 217002040TN35
HORN Inserts 217.0020.40 TN35 for Turning
Please note:Technical instructions

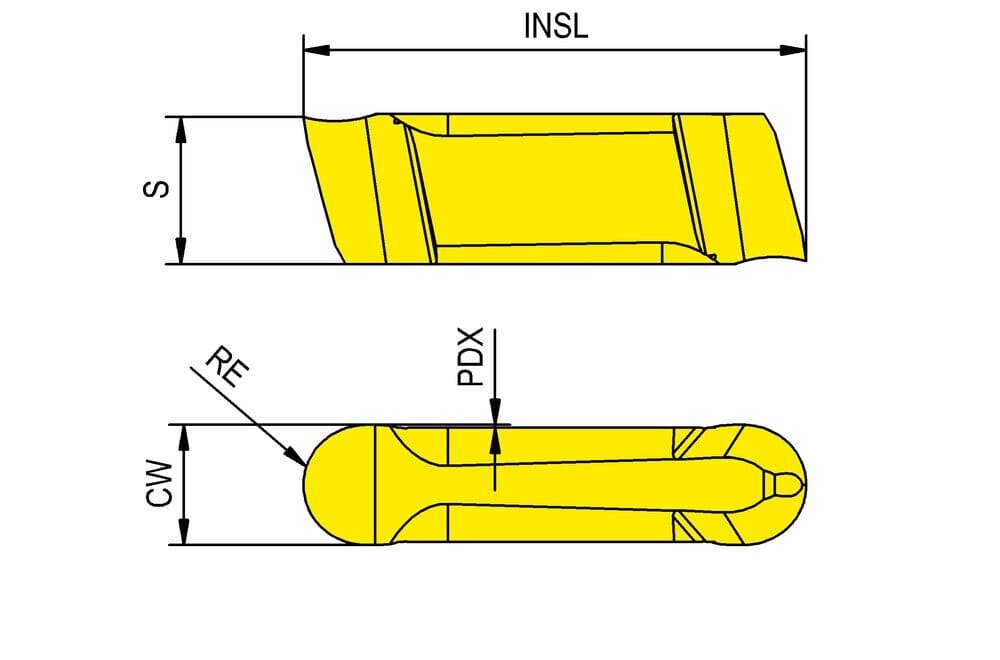

Cutting edge height (S)
4.9 mm
Corner radius (RE)
2 mm
profile distance x (PDX)
0.1 mm
Insert length (INSL)
16.75 mm
Cutting width (CW)
4 mm
| Downloads | |
|---|---|
| 217_0020_40_TN35-DXF.DXF | Download |
| 217_0020_40_TN35-STP.STP | Download |
| 217_0020_40_TN35-ISO.XML | Download |
| 217_0020_40_TN35-DIN.XML | Download |
| Download all files | |
