217.0515.00 P20
Inserts
Part number 217051500P20

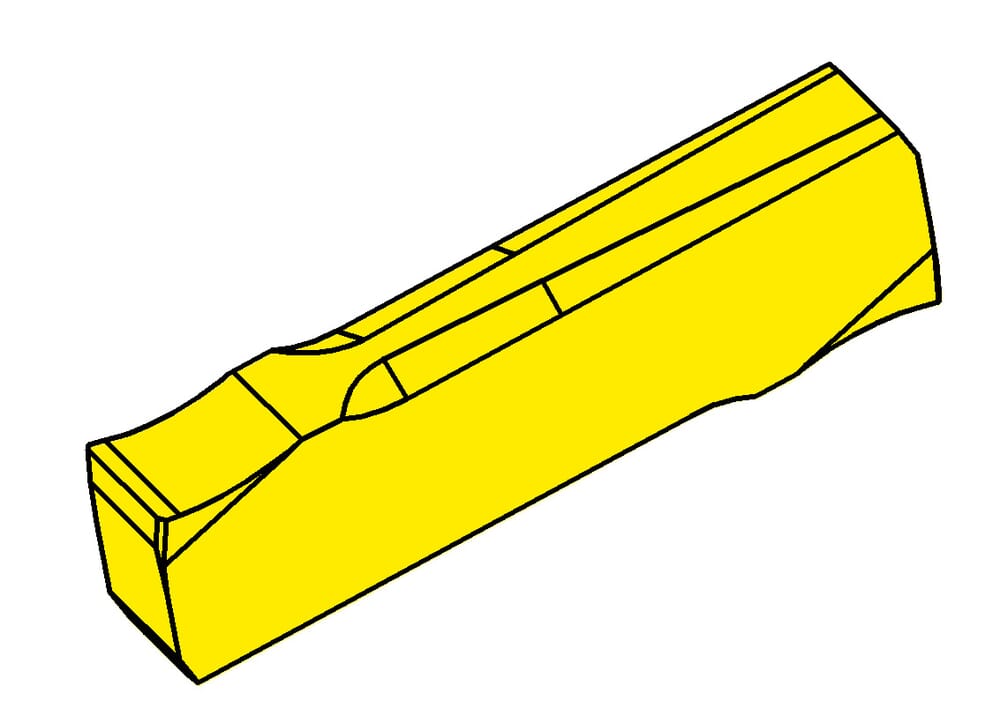

HORN Inserts 217.0515.00 P20 for Turning
Please note:Technical instructions
Cancellation (a1)
0.1 mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN217040008N$$$$$
Katalog_SSC
21704
Plating seat size (Größe)
4
Width of groove (w)
5.29 mm
Nominal range (Nw)
5.15 mm
| Downloads | |
|---|---|
| 217_0515_00_P20-DXF.DXF | Download |
| 217_0515_00_P20-STP.STP | Download |
| 217_0515_00_P20-ISO.XML | Download |
| 217_0515_00_P20-DIN.XML | Download |
| Download all files | |
