217.1609.33 TN32
Inserts
Part number 217160933TN32

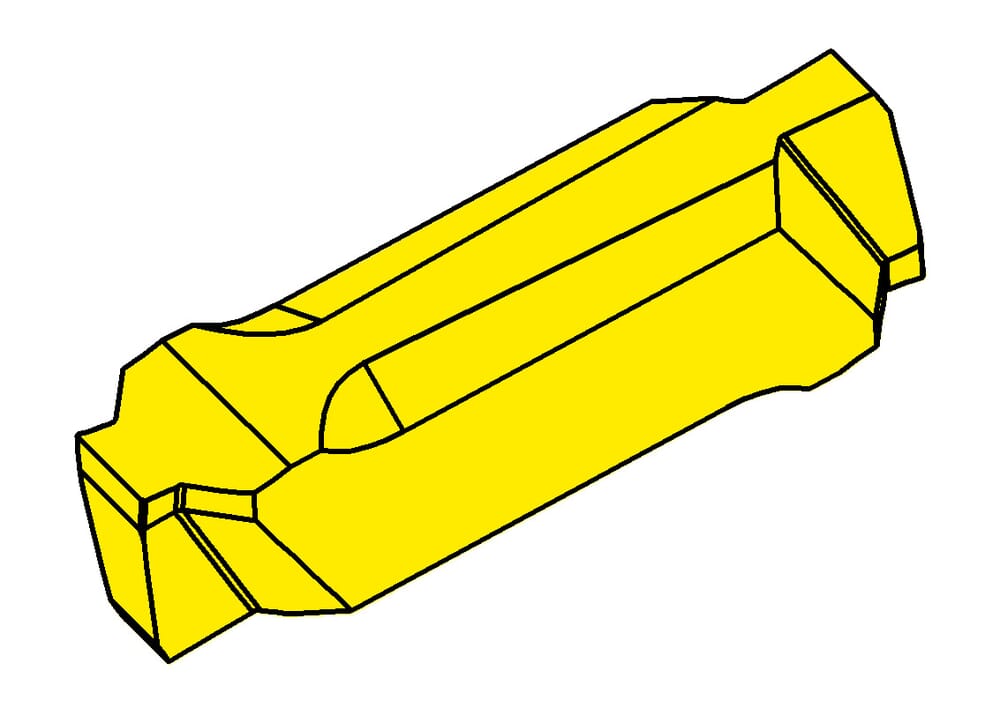

HORN Inserts 217.1609.33 TN32 for Turning
Please note:Technical instructions
Cancellation (a1)
0.79 mm
Maximum depth of groove (tmax)
1 mm
Groove depth without groove outer edge chamfer (t1)
0.85 mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN217030008N$$$$$
Katalog_SSC
21703
Plating seat size (Größe)
3
Width of groove (w)
1.74 mm
Nominal range (Nw)
1.6 mm
Cutting insert width (s)
3.3 mm
| Downloads | |
|---|---|
| 217_1609_33_TN32-DXF.DXF | Download |
| 217_1609_33_TN32-STP.STP | Download |
| 217_1609_33_TN32-ISO.XML | Download |
| 217_1609_33_TN32-DIN.XML | Download |
| Download all files | |
