217.2115.43 TN32
Inserts
Part number 217211543TN32
HORN Inserts 217.2115.43 TN32 for Turning
Please note:Technical instructions

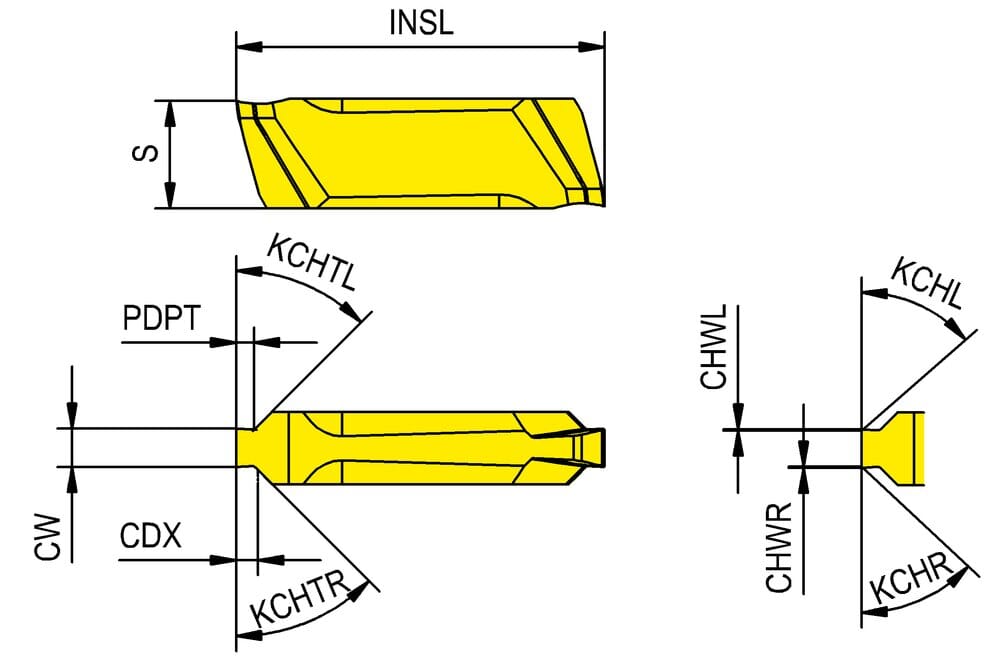

Breite Sicherungsring (RTRG)
2.15 mm
Flankenfasenwinkel, rechts (KCHTR)
45 °
Flankenfasenwinkel, links (KCHTL)
45 °
Eckfasenwinkel, rechts (KCHR)
45 °
Eckfasenwinkel, links (KCHL)
45 °
Eckenfasenbreite rechts (CHWR)
0.05 mm
Eckenfasenbreite links (CHWL)
0.05 mm
Schneidkantenhöhe (S)
4.9 mm
Profiltiefe (PDPT)
1.35 mm
Schneidplattenlänge (INSL)
16.75 mm
Schnittbreite, Nennmaß (CW)
2.29 mm
Schnitttiefe, max. (CDX)
1.5 mm
| Downloads | |
|---|---|
| 217_2115_43_TN32-DXF.DXF | Download |
| 217_2115_43_TN32-STP.STP | Download |
| 217_2115_43_TN32-ISO.XML | Download |
| 217_2115_43_TN32-DIN.XML | Download |
| Download all files | |
