217.4125.53 MG12
insert
Part number 217412553MG12

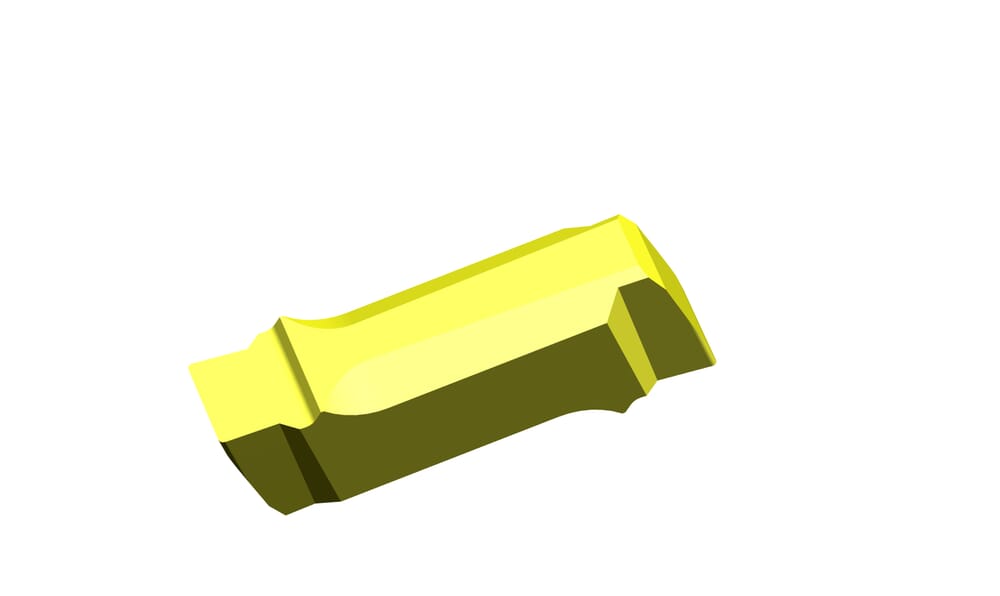

HORN insert 217.4125.53 MG12 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Cutting insert width (s)
5.3
mm
Nominal range (Nw)
4.15
mm
Width of groove (w)
4.29
mm
Plating seat size (Größe)
4
Katalog_SSC
21704
DIN_SSC
HORN-217040008N
ISO_SSC
HORN217040008N$$$$$
Groove depth without groove outer edge chamfer (t1)
2.35
mm
Maximum depth of groove (tmax)
2.5
mm
Cancellation (a1)
0.52
mm
| Downloads | |
|---|---|
| 217_4125_53.DXF | Download |
