229.0300.10 TN35
Inserts
Part number 229030010TN35
HORN Inserts 229.0300.10 TN35 for Turning
Please note:Technical instructions

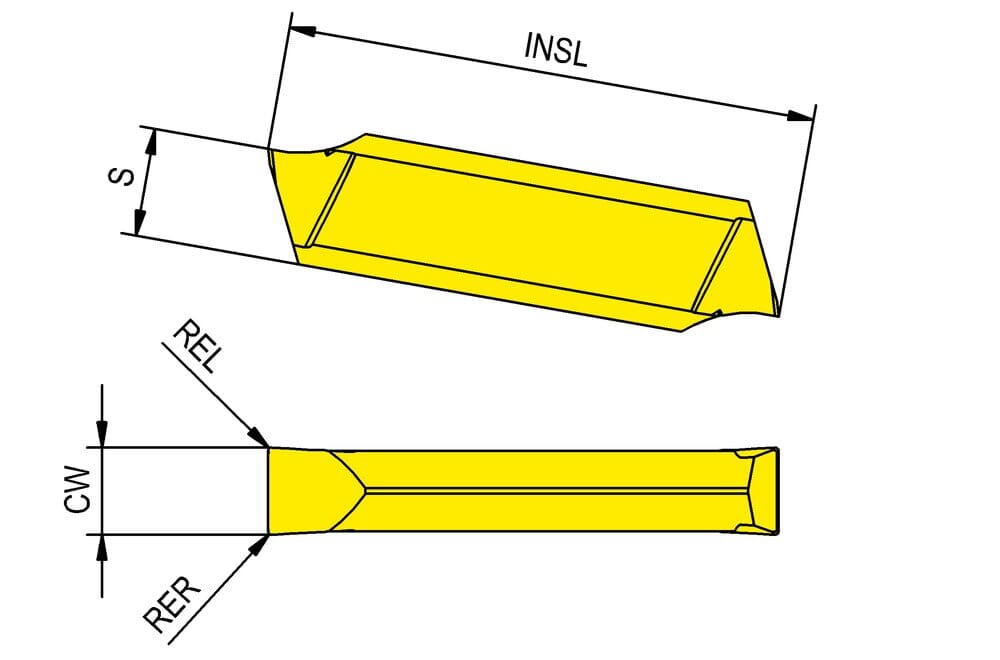

Cutting edge height (S)
6.2 mm
corner radius left hand (REL)
0.2 mm
corner radius right hand (RER)
0.2 mm
Insert length (INSL)
30.4 mm
Cutting width (CW)
3 mm
| Downloads | |
|---|---|
| 229_0300_10_TN35-DXF.DXF | Download |
| 229_0300_10_TN35-STP.STP | Download |
| 229_0300_10_TN35-ISO.XML | Download |
| 229_0300_10_TN35-DIN.XML | Download |
| Download all files | |
