229.0300.20 K10
Inserts
Part number 229030020K10
HORN Inserts 229.0300.20 K10 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISOSSC
HORN229020108N$$$$$;HORN229030108N$$$$$
Katalog_SSC
229020;229030
Plating seat size (Größe)
2;3

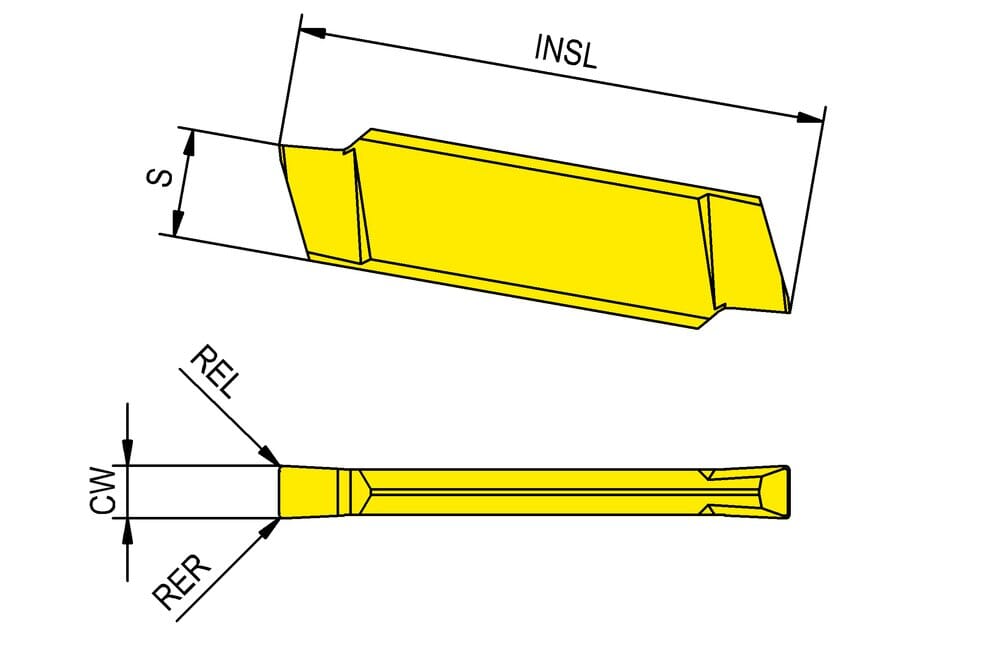

Width of groove (w)
3 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 229_0300_20_K10-DXF.DXF | Download |
| 229_0300_20_K10-STP.STP | Download |
| 229_0300_20_K10-ISO.XML | Download |
| 229_0300_20_K10-DIN.XML | Download |
| Download all files | |
