229.0400.10 K10
Inserts
Part number 229040010K10

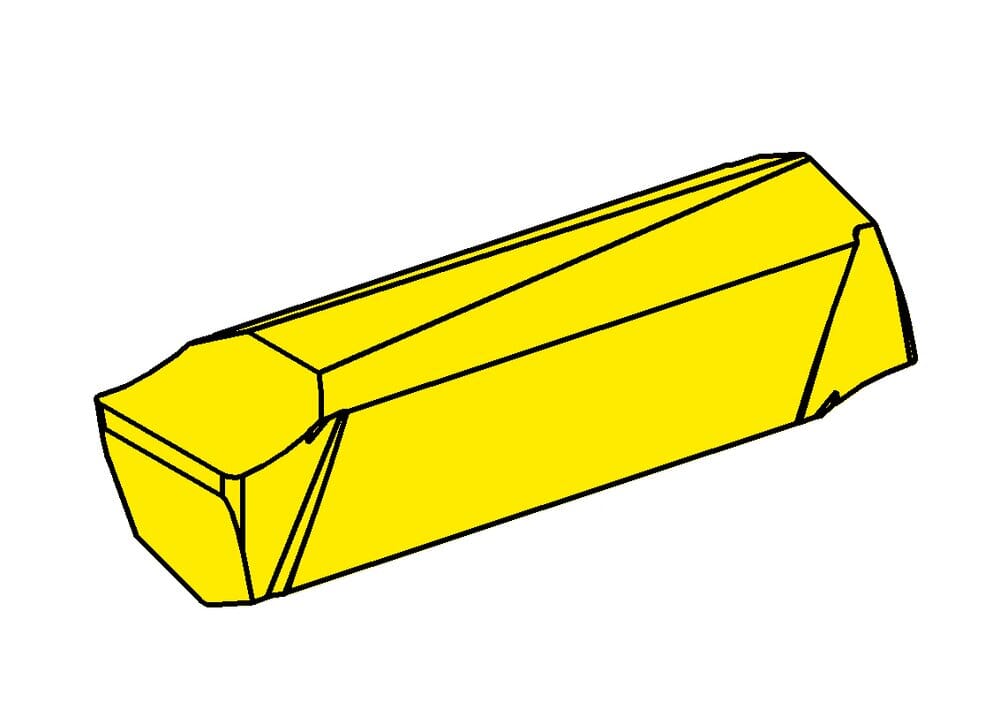

HORN Inserts 229.0400.10 K10 for Turning
Please note:Technical instructions

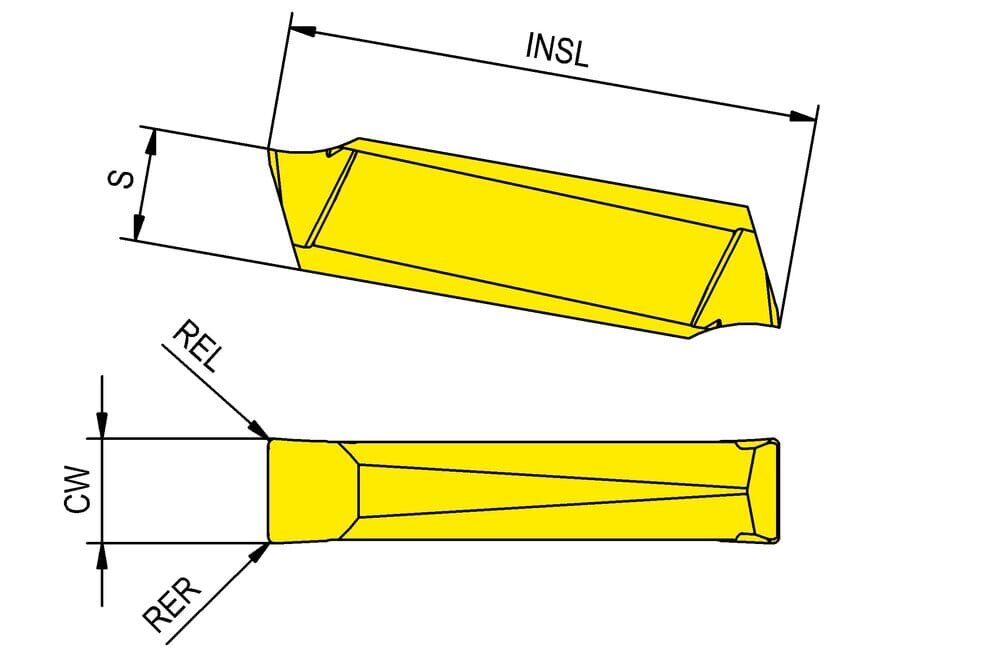

Schneidkantenhöhe (S)
6.2 mm
Eckenradius links (REL)
0.2 mm
Eckenradius rechts (RER)
0.2 mm
Schneidplattenlänge (INSL)
30.4 mm
Schnittbreite, Nennmaß (CW)
4 mm
| Downloads | |
|---|---|
| 229_0400_10_K10-DXF.DXF | Download |
| 229_0400_10_K10-STP.STP | Download |
| 229_0400_10_K10-ISO.XML | Download |
| 229_0400_10_K10-DIN.XML | Download |
| Download all files | |
