229.0400.20 K10
Inserts
Part number 229040020K10
HORN Inserts 229.0400.20 K10 for Turning
Please note:Technical instructions

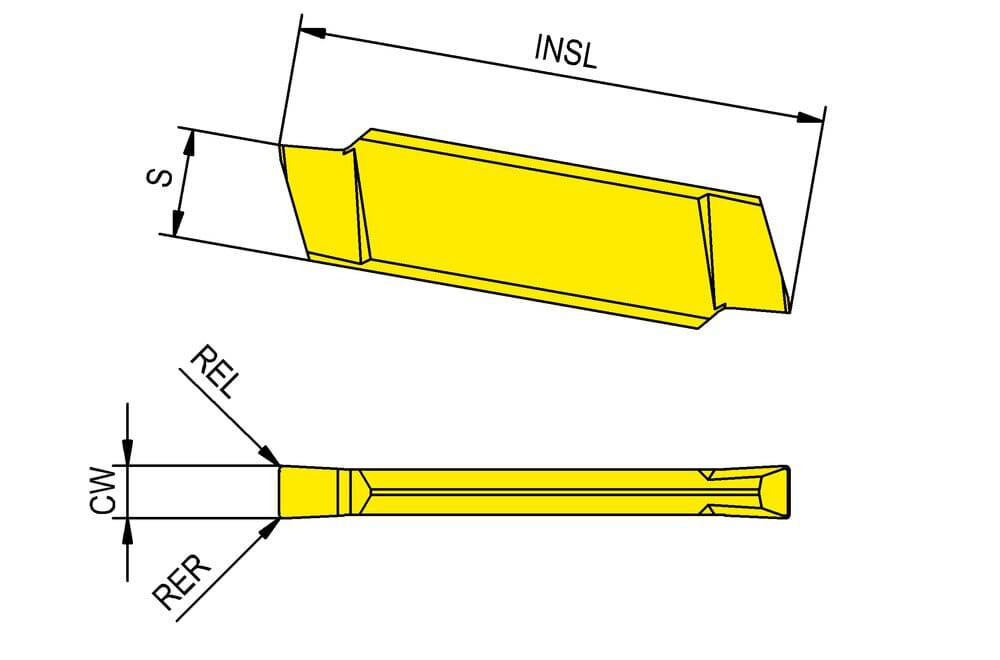

Cutting edge height (S)
6.2 mm
corner radius left hand (REL)
0.2 mm
corner radius right hand (RER)
0.2 mm
Insert length (INSL)
30.4 mm
Cutting width (CW)
4 mm
| Downloads | |
|---|---|
| 229_0400_20_20171121_185617794.STP | Download |
| 229_0400_20_K10-DIN.XML | Download |
| 229_0400_20_K10-ISO.XML | Download |
| Download all files | |
