229.0400.20 TC92
Inserts
Part number 229040020TC92

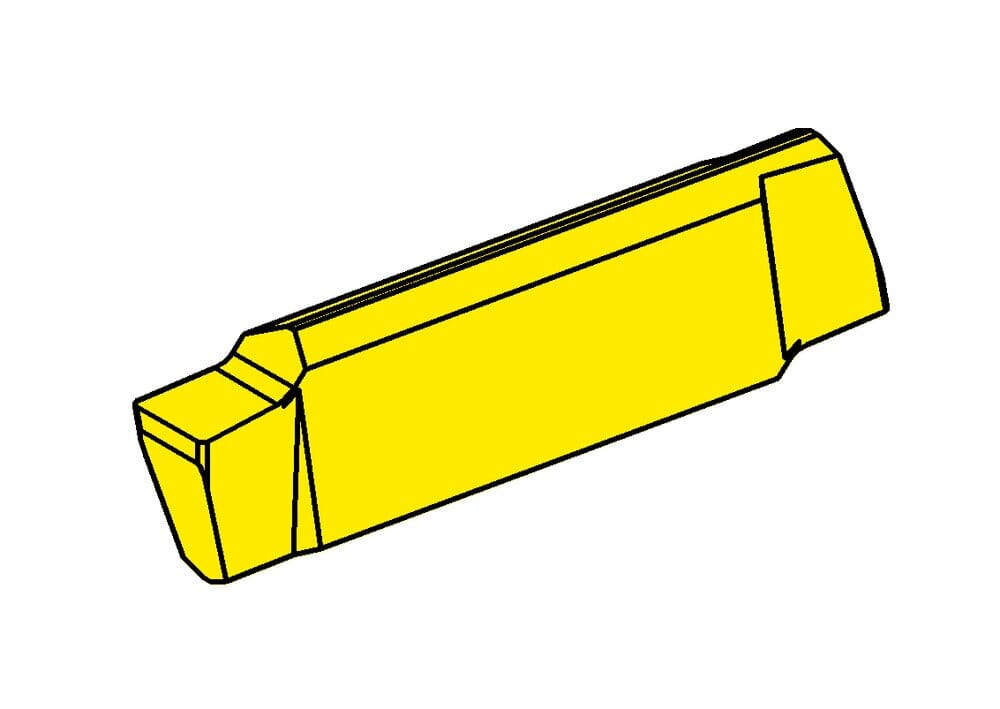

HORN Inserts 229.0400.20 TC92 for Turning
Please note:Technical instructions

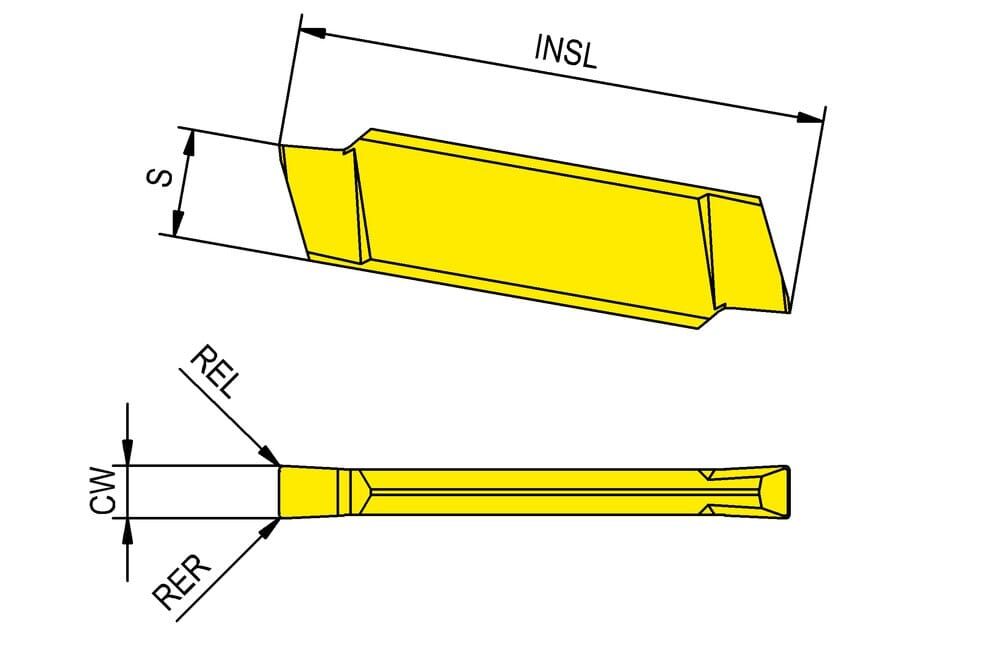

Schneidkantenhöhe (S)
6.2 mm
Eckenradius links (REL)
0.2 mm
Eckenradius rechts (RER)
0.2 mm
Schneidplattenlänge (INSL)
30.4 mm
Schnittbreite, Nennmaß (CW)
4 mm
| Downloads | |
|---|---|
| 229_0400_20_20171121_200801778.STP | Download |
| 229_0400_20_TC92-ISO.XML | Download |
| 229_0400_20_TC92-DIN.XML | Download |
| Download all files | |
