229.0500.20 IG66
Insert
Part number 229050020IG66
HORN Insert 229.0500.20 IG66 for Turning
Please note:Technical instructions

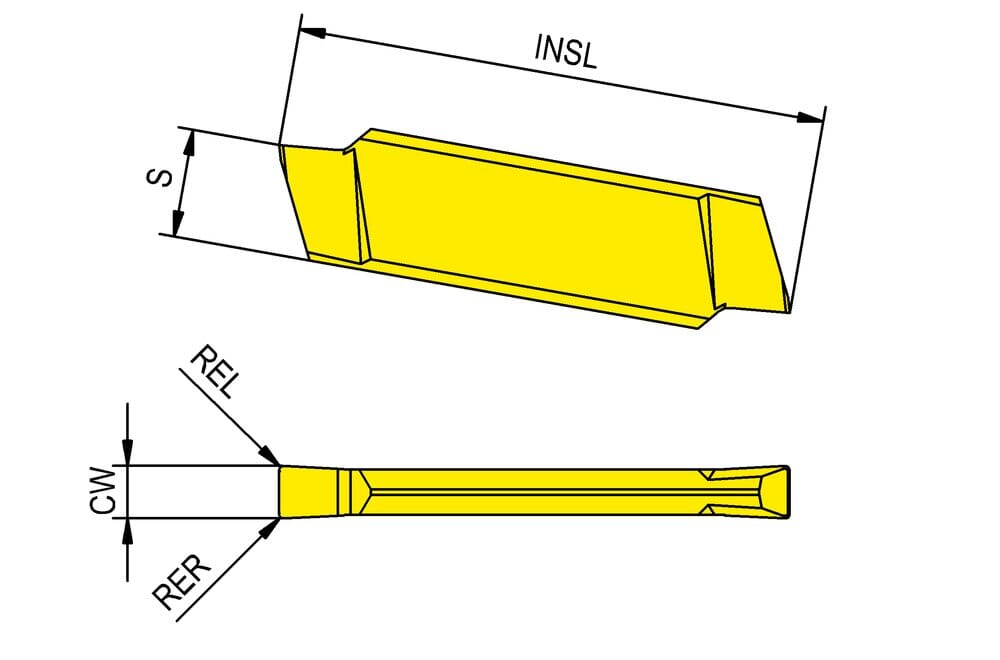

Schneidkantenhöhe (S)
6.2 mm
Eckenradius links (REL)
0.2 mm
Eckenradius rechts (RER)
0.2 mm
Schneidplattenlänge (INSL)
30.4 mm
Schnittbreite, Nennmaß (CW)
5 mm
