229.0500.34 IG66
Insert
Part number 229050034IG66

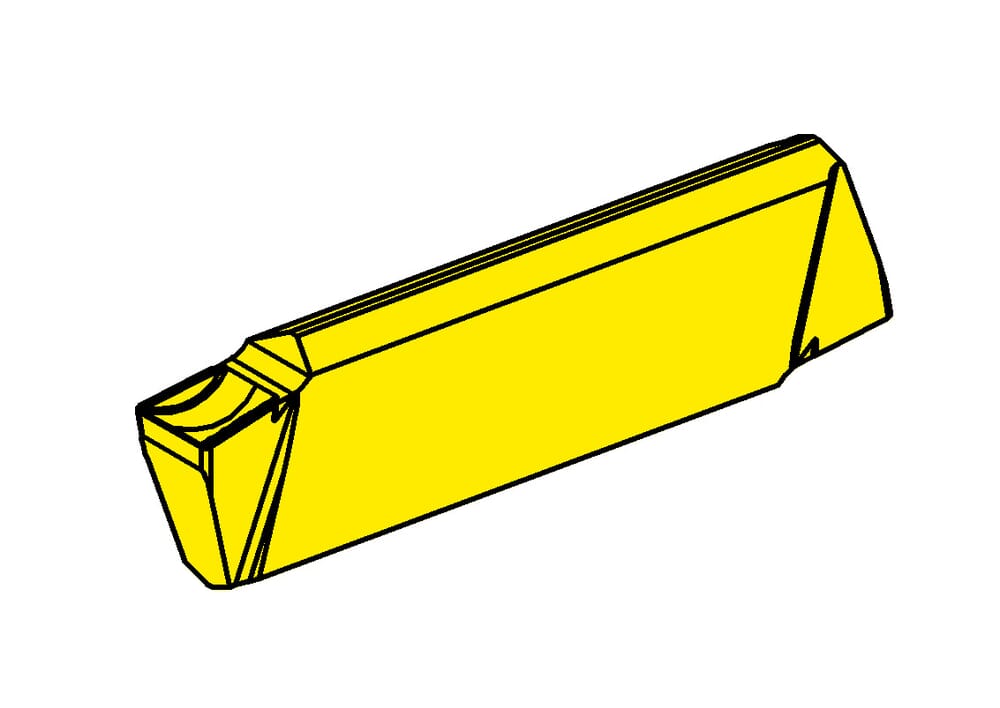

HORN Insert 229.0500.34 IG66 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Plating seat size (Größe)
4
Width of groove (w)
5 mm
Corner radius (r)
0.4 mm
| Downloads | |
|---|---|
| 229_0500_34_IG66-DXF.DXF | Download |
| 229_0500_34_IG66-STP.STP | Download |
| 229_0500_34_IG66-ISO.XML | Download |
| 229_0500_34_IG66-DIN.XML | Download |
| Download all files | |
