229.0600.20 TC92
Inserts
Part number 229060020TC92
HORN Inserts 229.0600.20 TC92 for Turning
Please note:Technical instructions

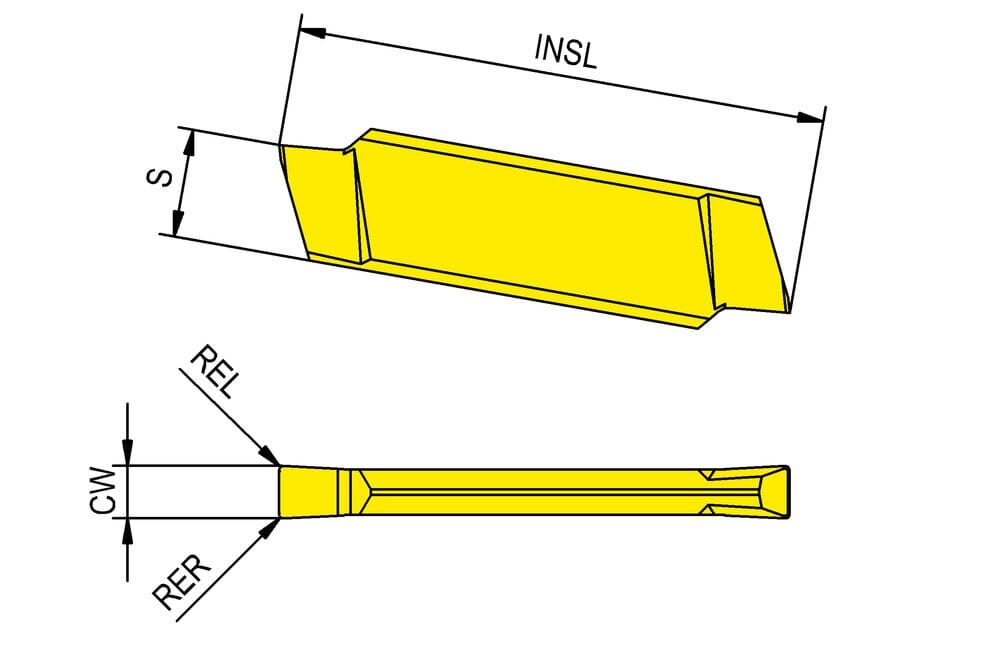

Schneidkantenhöhe (S)
6.5 mm
Eckenradius links (REL)
0.4 mm
Eckenradius rechts (RER)
0.4 mm
Schneidplattenlänge (INSL)
30.6 mm
Schnittbreite, Nennmaß (CW)
6 mm
| Downloads | |
|---|---|
| 229_0600_20_TC92-DXF.DXF | Download |
| 229_0600_20_TC92-STP.STP | Download |
| 229_0600_20_TC92-ISO.XML | Download |
| 229_0600_20_TC92-DIN.XML | Download |
| Download all files | |
