229.0600.31 IG66
insert
Part number 229060031IG66

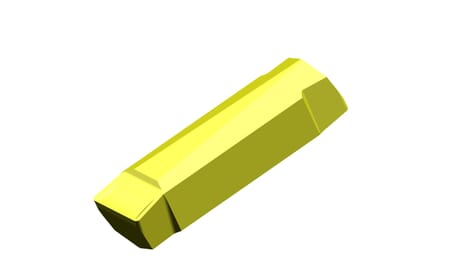

HORN insert 229.0600.31 IG66 for Turning
Please note:Technical instructions
Schneidkantenhöhe (S)
6.5 mm
Eckenradius links (REL)
0.4 mm
Eckenradius rechts (RER)
0.4 mm
Schneidplattenlänge (INSL)
30.6 mm
Schnittbreite, Nennmaß (CW)
6 mm
| Downloads | |
|---|---|
| 229_0600_31_IG66-DXF.DXF | Download |
| 229_0600_31_IG66-STP.STP | Download |
| 229_0600_31_IG66-ISO.XML | Download |
| 229_0600_31_IG66-DIN.XML | Download |
| Download all files | |
