229.FB40.02 IG6T
Insert
Part number 229FB4002IG6T

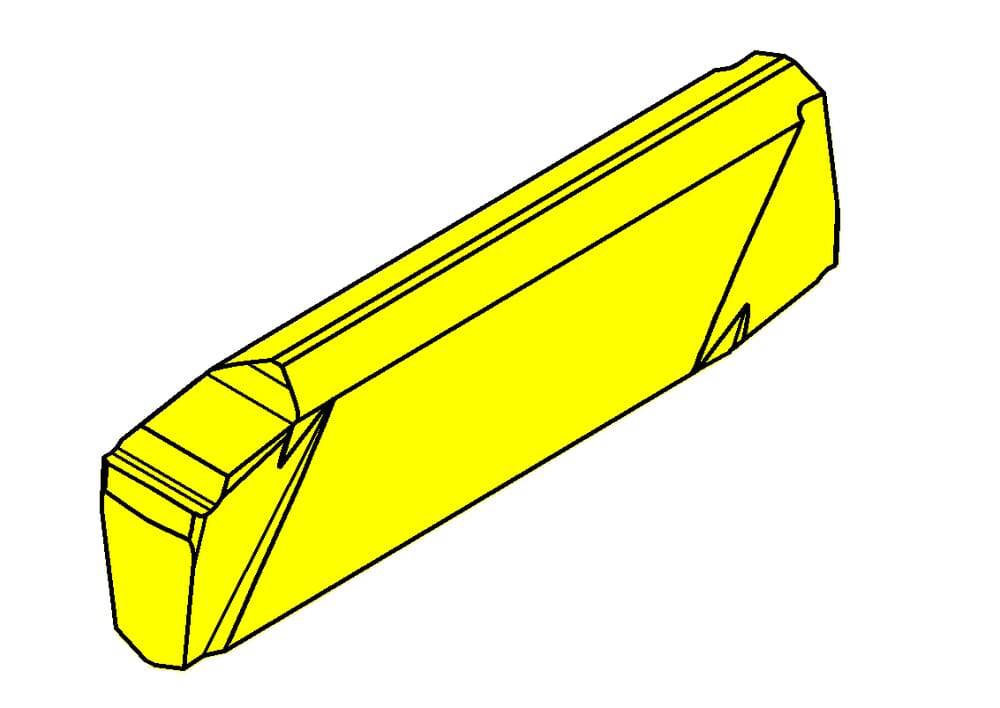

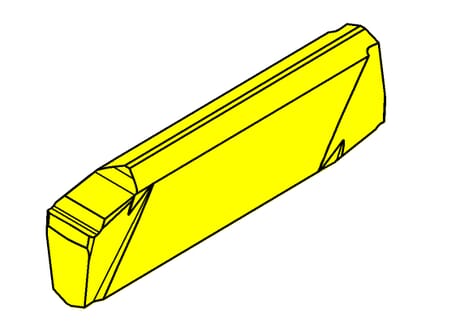

HORN Insert 229.FB40.02 IG6T for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229040108N$$$$$
Katalog_SSC
229040
Plating seat size (Größe)
4

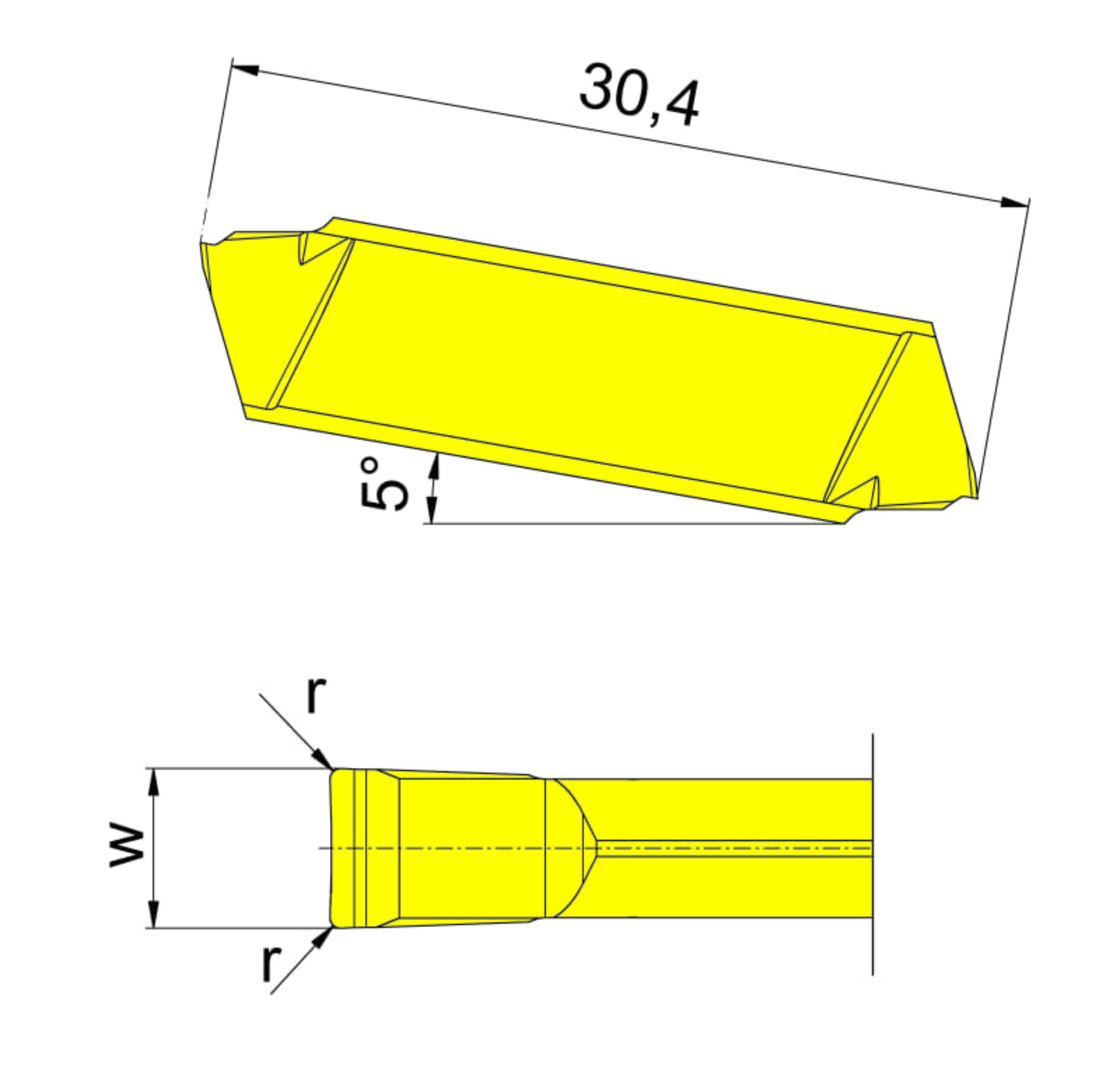

Width of groove (w)
4 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 229_FB40_02_IG6T-DXF.DXF | Download |
| 229_FB40_02_IG6T-STP.STP | Download |
| 229_FB40_02_IG6T-ISO.XML | Download |
| 229_FB40_02_IG6T-DIN.XML | Download |
| Download all files | |
