264.0250.20 TN35
Inserts
Part number 264025020TN35
HORN Inserts 264.0250.20 TN35 for Turning
Please note:Technical instructions

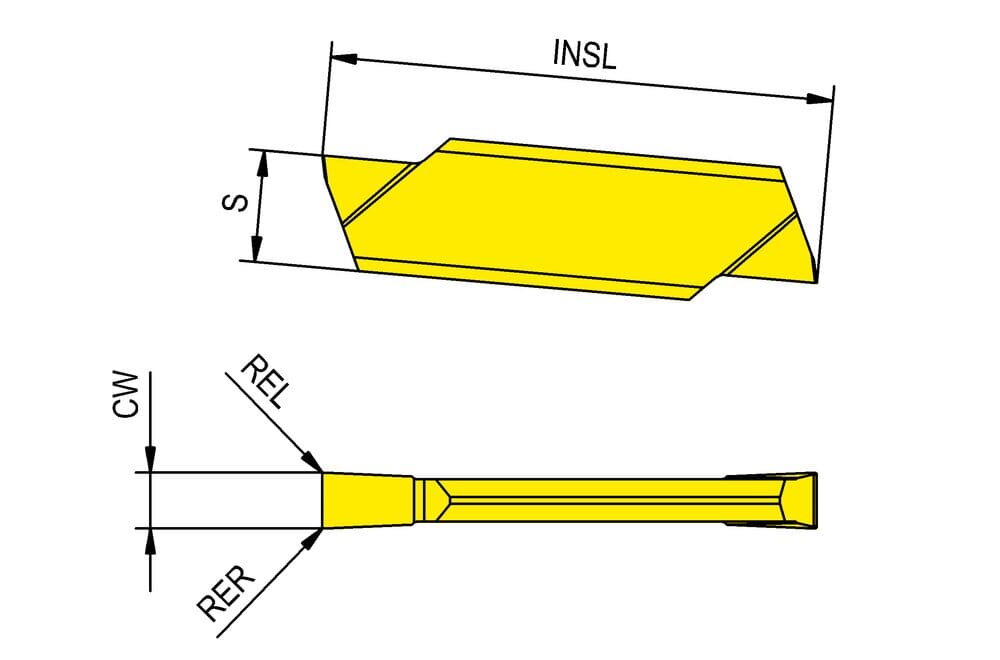

Cutting edge height (S)
4 mm
corner radius left hand (REL)
0.1 mm
corner radius right hand (RER)
0.1 mm
Insert length (INSL)
18 mm
Cutting width (CW)
2.5 mm
| Downloads | |
|---|---|
| 264_0250_20_20171121_190228201.STP | Download |
| 264_0250_20_TN35-ISO.XML | Download |
| 264_0250_20_TN35-DIN.XML | Download |
| 264_0250_20.DXF | Download |
| Download all files | |
