304.0006.12 EG55
Insert
Part number 304000612EG55

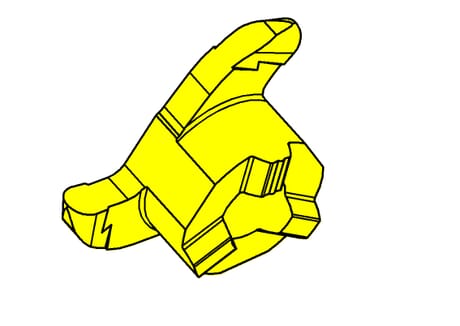

HORN Insert 304.0006.12 EG55 for Milling
Please note:Technical instructions

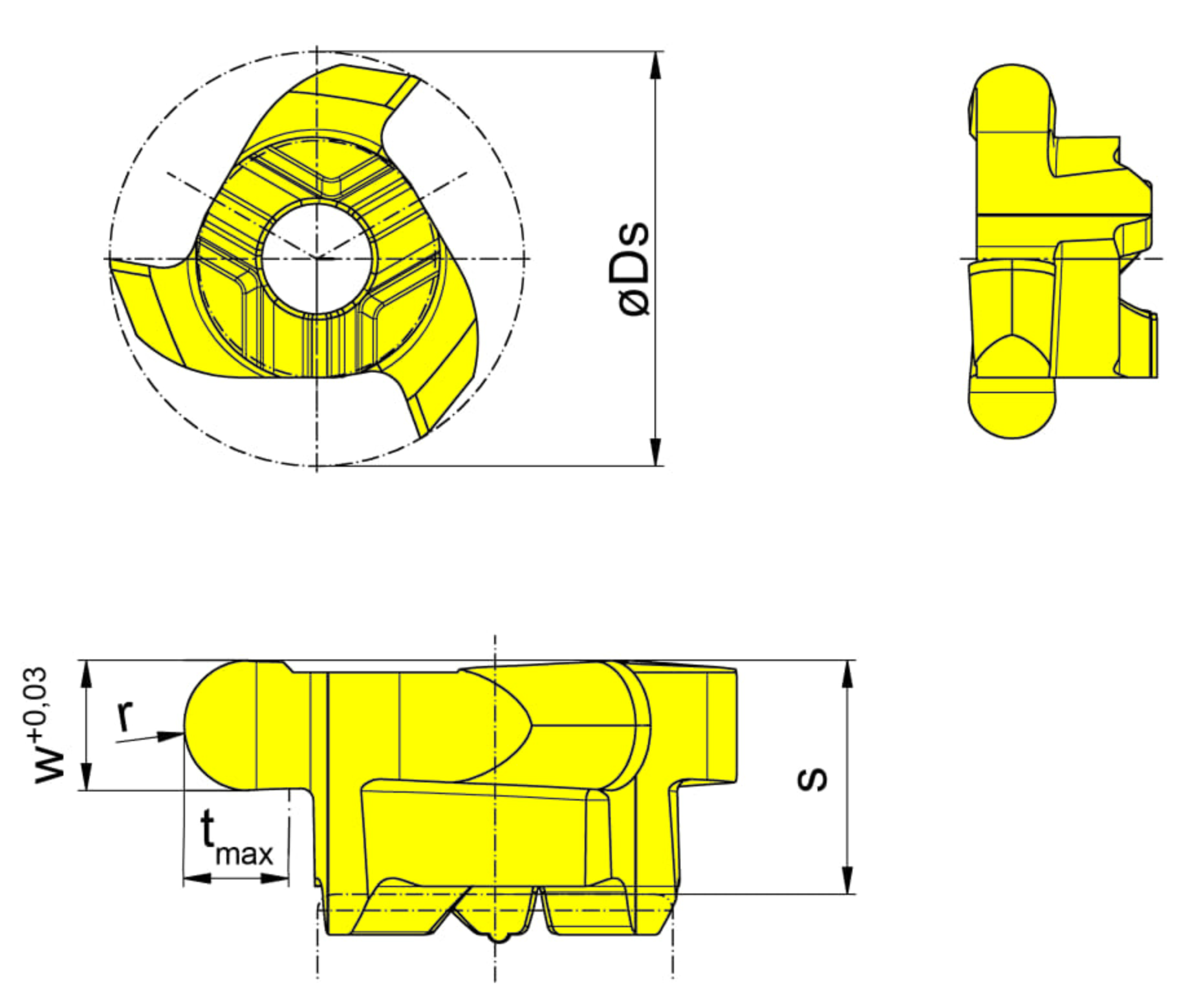

Cutting diameter (Ds)
7.7 mm
Number of teeth (Z)
3 St.
ISO_SSC
HORN304044$84R$$$$$
Katalog_SSC
304044R
Width of groove (w)
1.2 mm
Maximum milling depth/ depth of groove (tmax)
1.3 mm
Cutting insert thickness, setting length complete (s)
2.9 mm
Radius, full-radius (r)
0.6 mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 304_0006_12_EG55-ISO.XML | Download |
| 304_0006_12_EG55-DXF.DXF | Download |
| 304_0006_12_EG55-STP.STP | Download |
| 304_0006_12_EG55-DIN.XML | Download |
| Download all files | |
