304.0060.20 IG35
Insert
Part number 304006020IG35
HORN Insert 304.0060.20 IG35 for Milling
Please note:Technical instructions

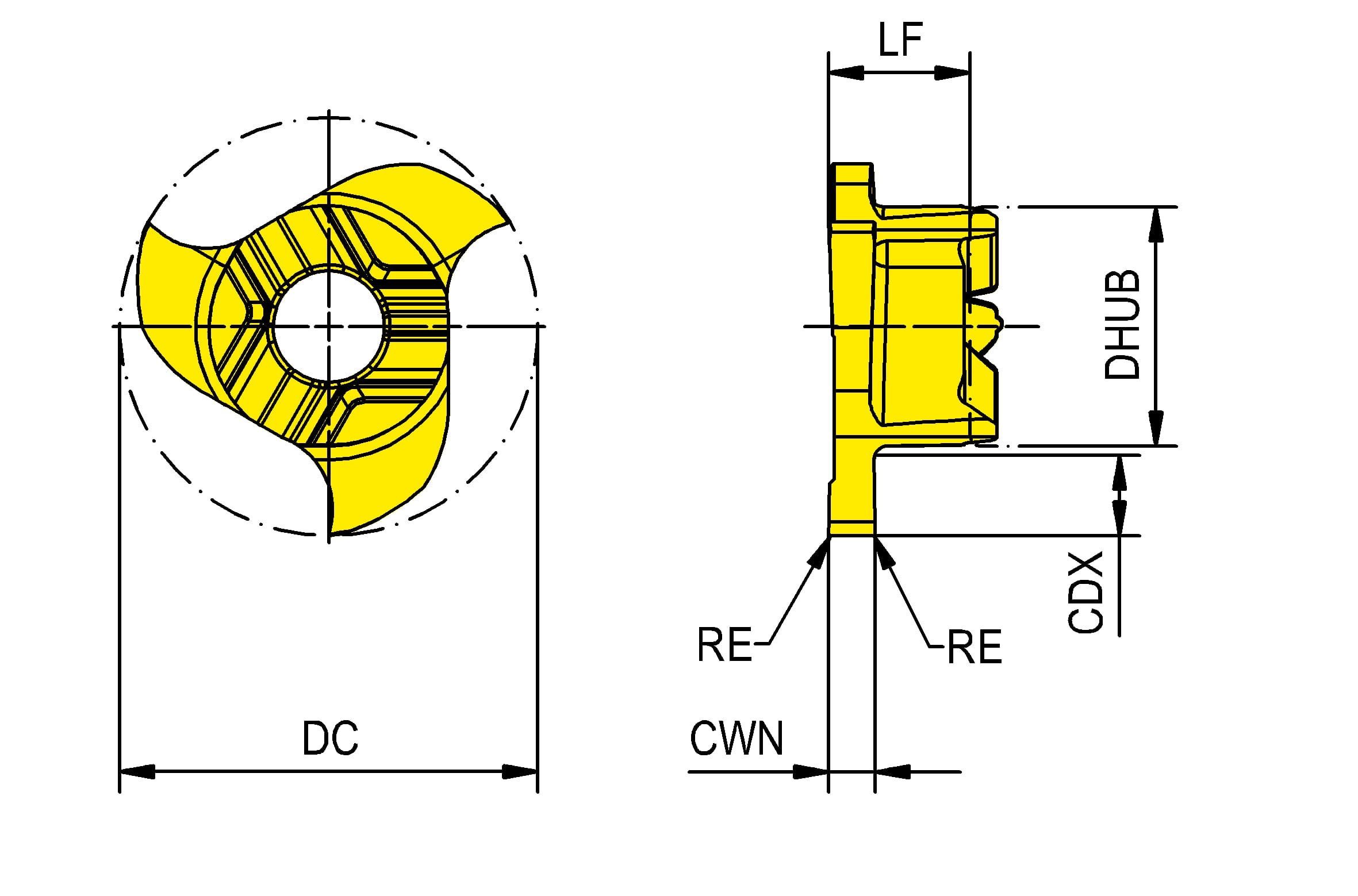

Cutting width minimum (CWN)
0.61 mm
Functional length (LF)
2.6 mm
hub diameter (DHUB)
4.4 mm
Cutting diameter (DC)
7.7 mm
Cutting depth maximum (CDX)
1.3 mm
| Downloads | |
|---|---|
| 304_0060_20_IG35-DXF.DXF | Download |
| 304_0060_20_IG35-STP.STP | Download |
| 304_0060_20_IG35-DIN.XML | Download |
| 304_0060_20_IG35-ISO.XML | Download |
| Download all files | |
