304.0200.20 EG55
Insert
Part number 304020020EG55
HORN Insert 304.0200.20 EG55 for Milling
Please note:Technical instructions

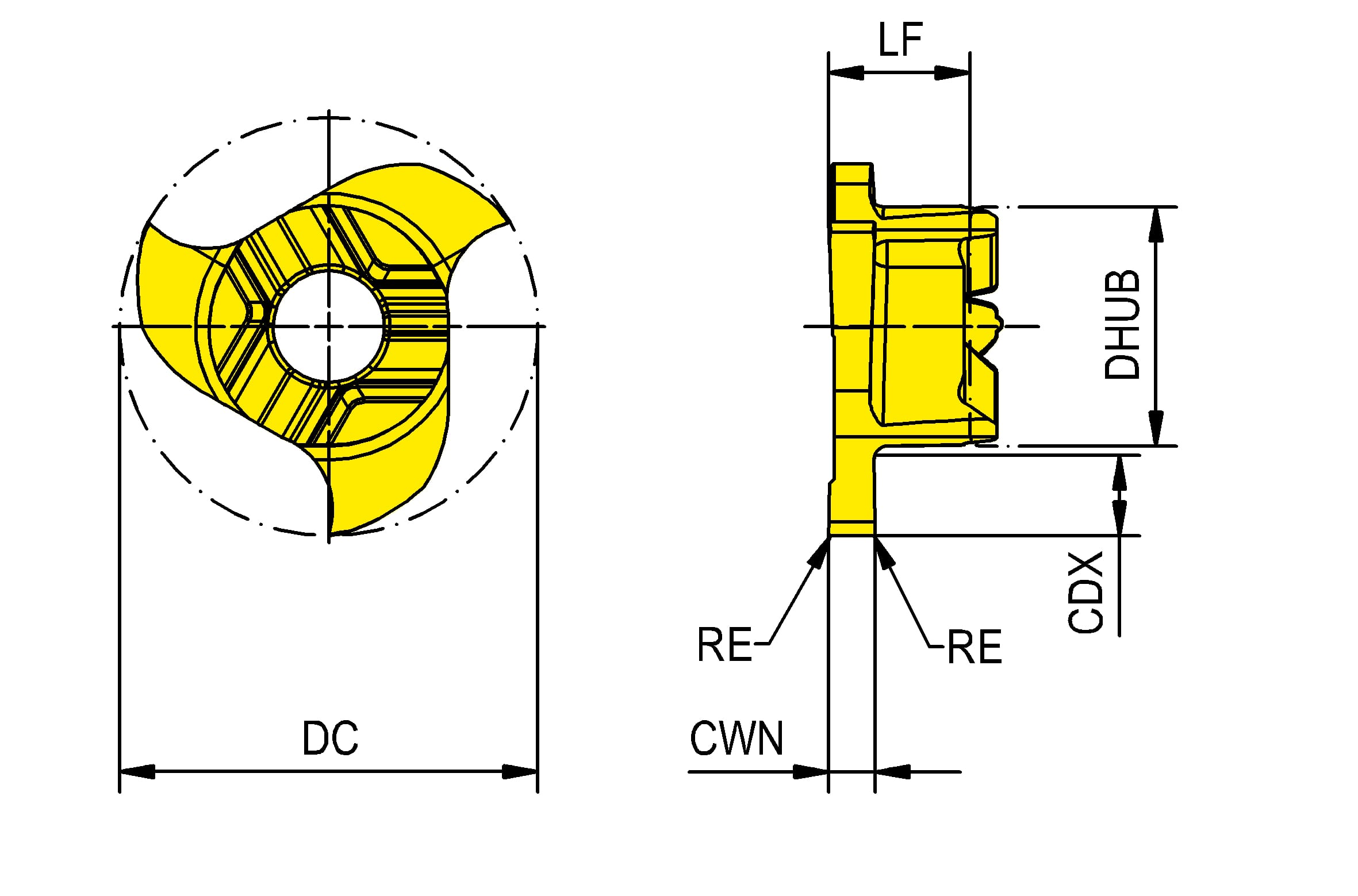

Cutting width minimum (CWN)
2.01 mm
corner radius (RE)
0.2 mm
Functional length (LF)
2.9 mm
hub diameter (DHUB)
4.4 mm
Cutting diameter (DC)
7.7 mm
Cutting depth maximum (CDX)
1.3 mm
| Downloads | |
|---|---|
| 304_0200_20_EG55-ISO.XML | Download |
| 304_0200_20_EG55-DIN.XML | Download |
| 304_0200_20_EG55-DXF.DXF | Download |
| 304_0200_20_EG55-STP.STP | Download |
| Download all files | |
