306.0005.10 RC45
Insert
Part number 306000510RC45
HORN Insert 306.0005.10 RC45 for Milling
Please note:Technical instructions

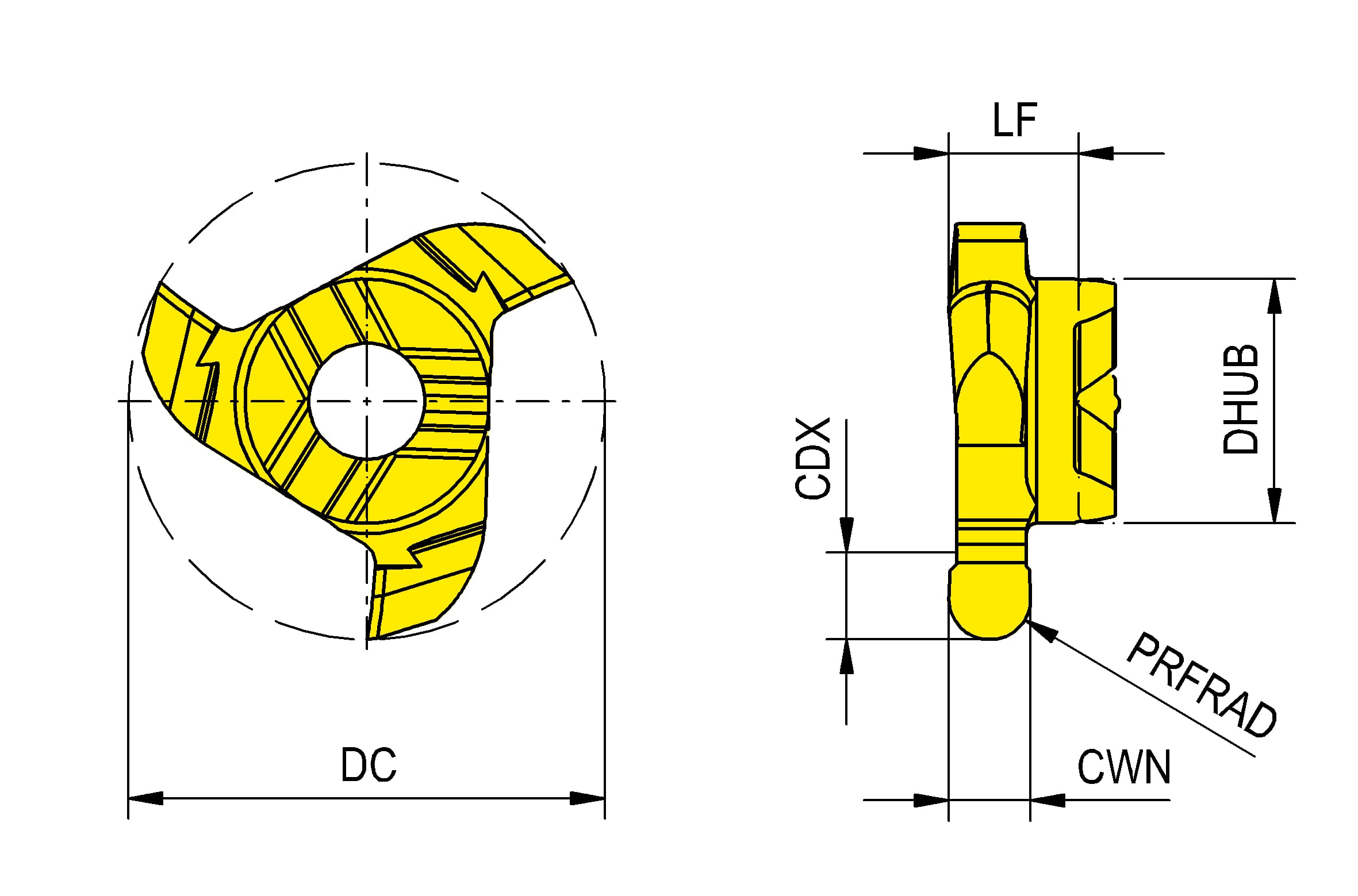

Cutting width minimum (CWN)
1.015 mm
Profile radius (PRFRAD)
0.5 mm
Functional length (LF)
3.2 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
2.5 mm
| Downloads | |
|---|---|
| 306_0005_10_RC45-ISO.XML | Download |
| 306_0005_10_RC45-DXF.DXF | Download |
| 306_0005_10_RC45-STP.STP | Download |
| 306_0005_10_RC45-DIN.XML | Download |
| Download all files | |
