306.0070.10.00 TA45
Insert
Part number 30600701000TA45

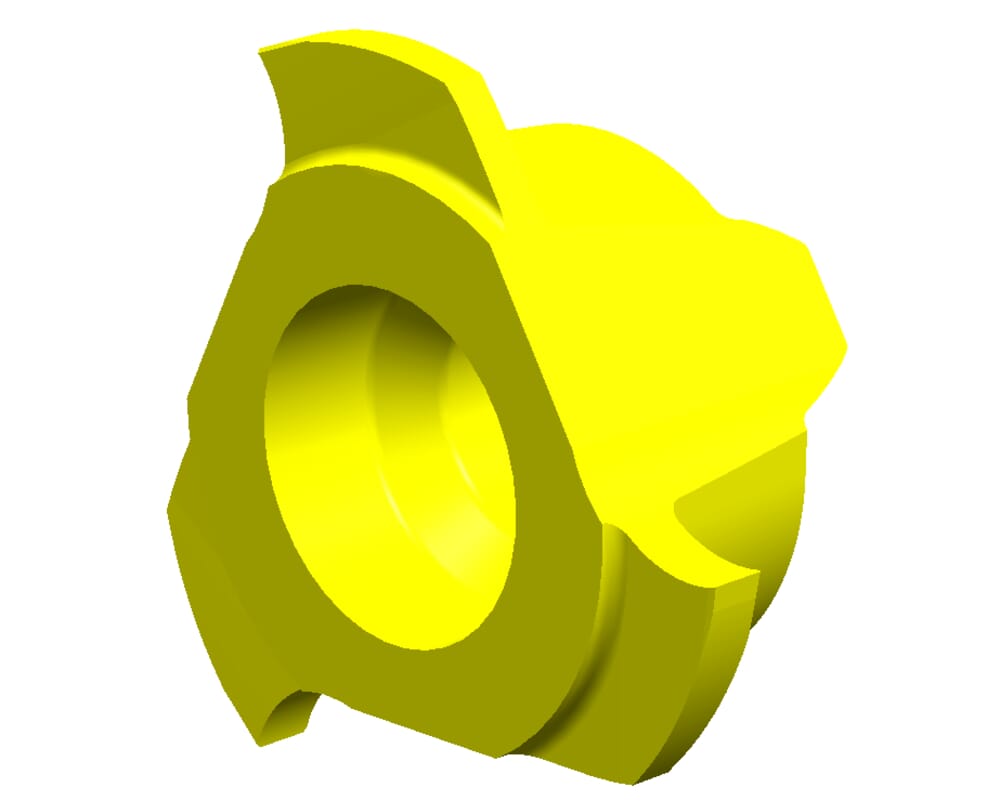

HORN Insert 306.0070.10.00 TA45 for Milling
Please note:Technical instructions
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
3.2
mm
Cutting insert thickness, setting length complete (s)
3.4
mm
Nominal range (Nw)
0.7
mm
Maximum milling depth/ depth of groove (tmax)
1.15
mm
Width of groove (w)
0.77
mm
Katalog_SSC
306060R
DIN_SSC
HORN-30606084R
ISO_SSC
HORN306060$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
9.7
mm
Downloads | |
---|---|
30600701000_20230112_141016839.STP | Download |
30600701000_20210629_102907339.DXF | Download |
Download all files |
