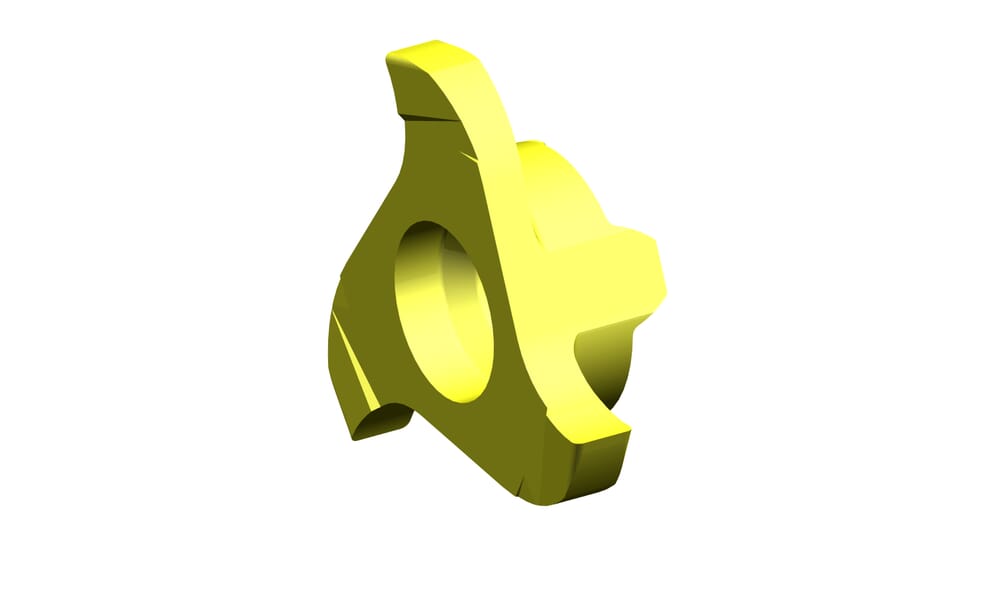

306.0150.00 TN35
Inserts
Part number 306015000TN35
HORN Inserts 306.0150.00 TN35 for Milling
Please note:Technical instructions
Schnittbreite minimum (CWN)
1.51 mm
Funktionslänge (LF)
3.2 mm
Nabendurchmesser (DHUB)
6 mm
Schneidendurchmesser (DC)
11.7 mm
Schnitttiefe, max. (CDX)
2.5 mm
| Downloads | |
|---|---|
| 306_0150_00_TN35-DXF.DXF | Download |
| 306_0150_00_TN35-STP.STP | Download |
| 306_0150_00_TN35-DIN.XML | Download |
| 306_0150_00_TN35-ISO.XML | Download |
| Download all files | |
