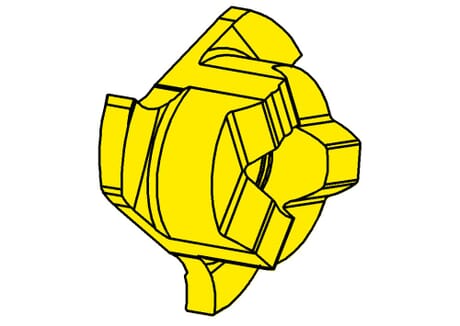

306.0160.10.00 TA45

Insert

Part number 30601601000TA45

HORN Insert 306.0160.10.00 TA45 for Milling

Cutting diameter (Ds)

9.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN306060$84R$$$$$

DIN_SSC

HORN-30606084R

Katalog_SSC

306060R

Width of groove (w)

1.71 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Nominal range (Nw)

1.6 mm

Cutting insert thickness, setting length complete (s)

3.2 mm
