306.0200.10.00 AS45

Insert

Part number 30602001000AS45

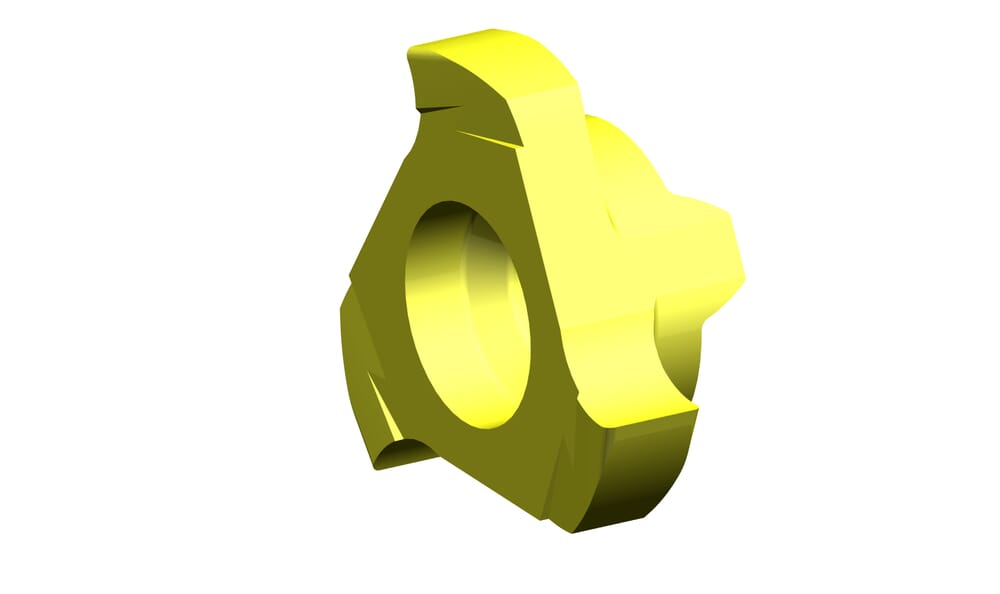

HORN Insert 306.0200.10.00 AS45 for Milling

Cutting diameter (Ds)

9.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN306060$84R$$$$$

Katalog_SSC

306060R

plating-seat-size

Width of groove (w)

2 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Cutting insert thickness, setting length complete (s)

3.2 mm

Corner radius (r)

0.2 mm
