306.0250.40 TI25
Inserts
Part number 306025040TI25
HORN Inserts 306.0250.40 TI25 for Milling
Please note:Technical instructions

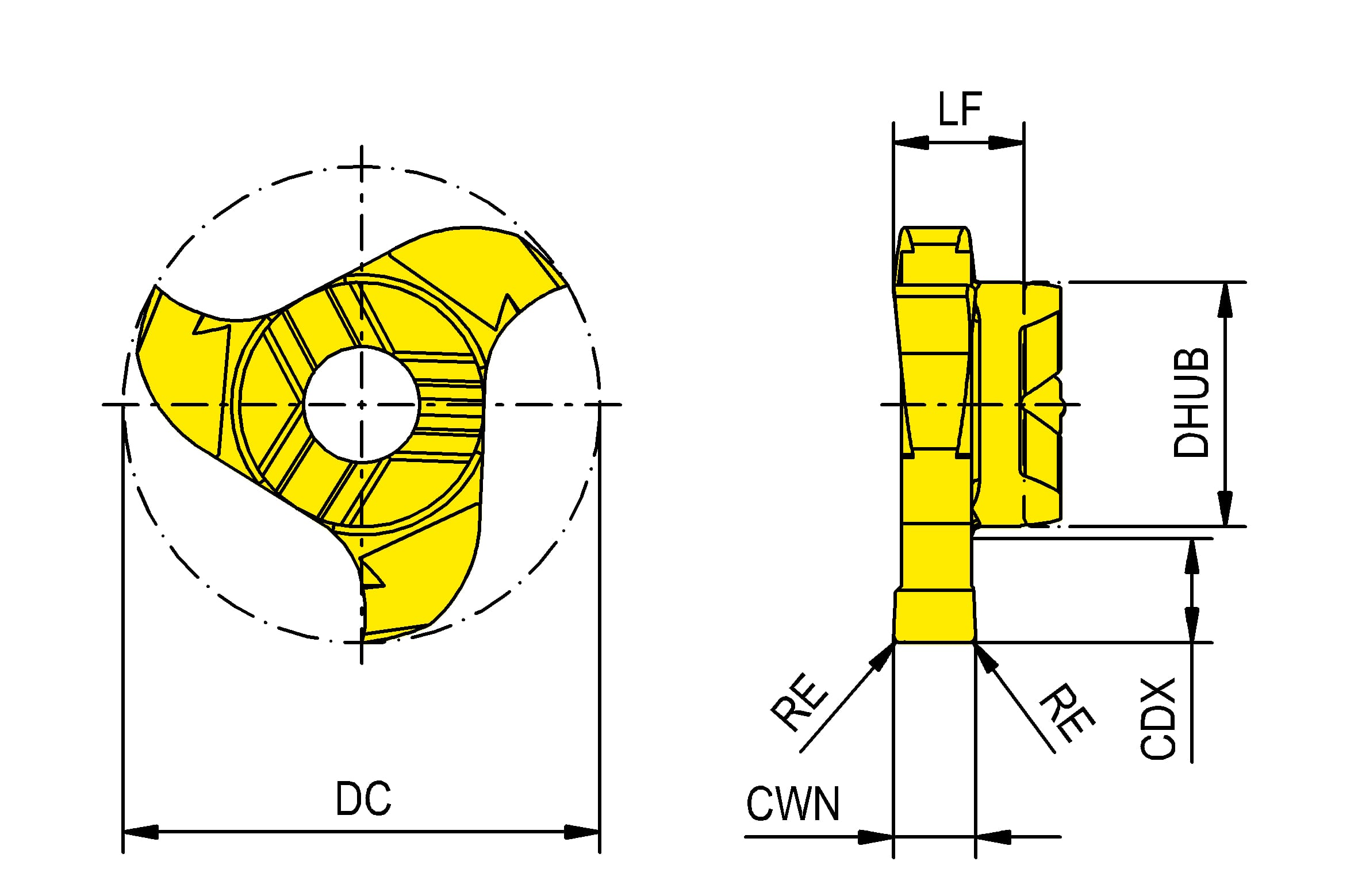

Cutting width minimum (CWN)
2.51 mm
Corner radius (RE)
0.2 mm
Functional length (LF)
3.2 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
2.5 mm
| Downloads | |
|---|---|
| 306_0250_40_TI25-ISO.XML | Download |
| 306_0250_40_TI25-DXF.DXF | Download |
| 306_0250_40_TI25-STP.STP | Download |
| 306_0250_40_TI25-DIN.XML | Download |
| Download all files | |
